Grace Technologies P-R2-M3RF0

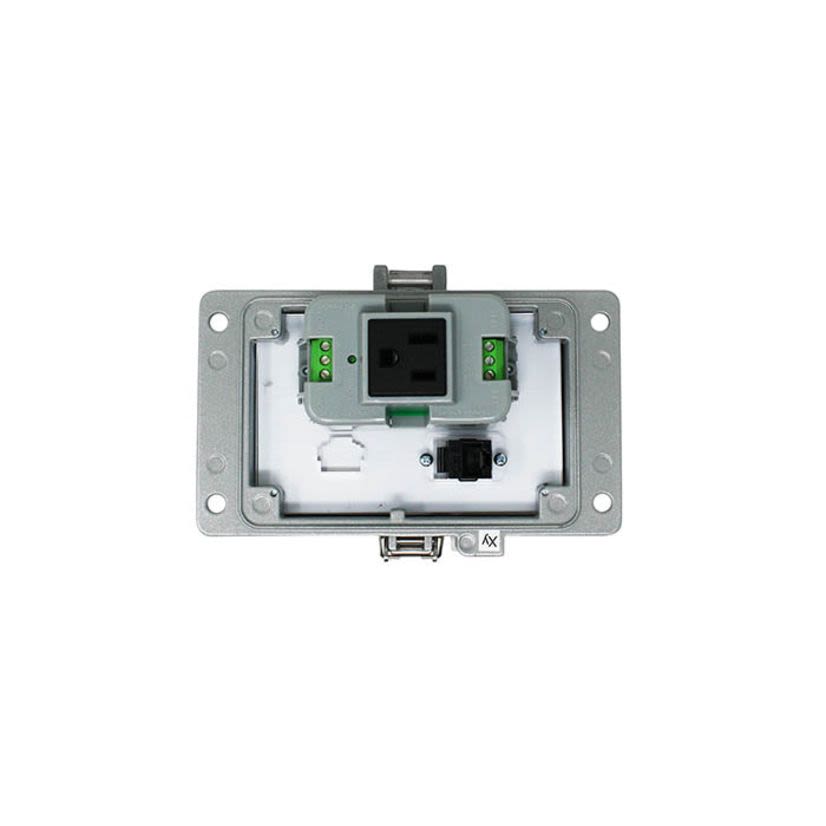

GracePorts P-R2-M3RF0 Bulkhead Computer Port Connector Interface, Plastic Housing
Grace Technologies P-R2-M3RF0
GracePorts P-R2-M3RF0 Bulkhead Computer Port Connector Interface, Plastic HousingOut of Stockmore info
|
BrandGrace Technologies
MFG #P-R2-M3RF0
Werner Part #1593148
UPC842864101628
Out of Stockmore info
|
BrandGrace Technologies
MFG #P-R2-M3RF0
Werner Part #1593148
UPC842864101628
Product Description
GracePorts Computer Port Connector Interface, Bulkhead, Panel Mounting, 120 VAC, 30 VDC, Cat 5e Ethernet RJ45 F/F Connector, Plastic Housing Material, 6.5 in L x 1.65 in W x 3.78 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Brightness400 cd/aq-m
ColorSilver
Communication PortsSingle Ethernet 10/100, RS-232, RS-485, CAN, USB Host, USB Device
Connector TypeCat 5e Ethernet RJ45 F/F
Country of OriginUS
Dimensions6.5 in L x 1.65 in W x 3.78 in H
Display ResolutionWSVGA 1024 x 600 pixel
Display Size10 in
Display TypeLED
Housing MaterialPlastic
ManufacturerGrace Technologies
MaterialPlastic
Memory512 MB DRAM
Power Source24 VDC, 0.75 A
SeriesXV-300
SoftwareGalileo
Temperature Rating0 to 50 deg C
TypeBulkhead
Voltage Rating120 V AC/30 V DC
Documents
Applications
Outdoor Use
Features
- Extension cable interfaces consist of fully shielded cable assemblies panel-mounted to the housing allowing a direct and cost effective method of interfacing to computers, printers, modems and networks
- Bulkhead interface method permits standard cable connections on both the front and the rear of the graceport unit
- Connections are made to and from the interface by way of user supplied computer cable assemblies, printed circuit assembly
- Low-profile circuit board interfaces simplify installation where backplane clearance is limited
- The compact design features a data connector on the front and terminal block connections on the rear for easy wiring
- Low voltage (data), limited to 30 VDC, high voltage supply (for computer use only)
- 1 port
- 48 point, NEMA 12/4, IP65, cast alloy base enclosure
- 120 VAC GFCI inside-outlet
- Without circuit breaker
Specifications
- SCCR Rating: 2kA
