IDEAL 85-377

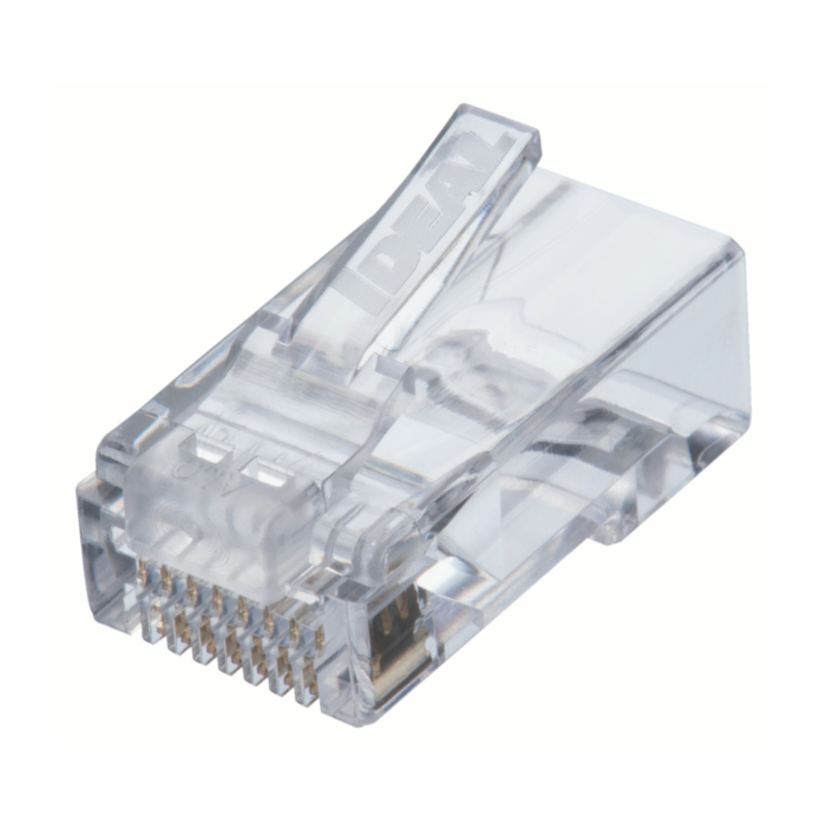

IDEAL 85-377 8-Postion 8-Contact RJ45 Feed-Thru Modular Plug, Solid/Stranded Conductor, Plastic, 100 Ohm Impedance
IDEAL 85-377
IDEAL 85-377 8-Postion 8-Contact RJ45 Feed-Thru Modular Plug, Solid/Stranded Conductor, Plastic, 100 Ohm ImpedanceIn Stock: 5300more info
|
BrandIDEAL
MFG #85-377
Werner Part #4175895
UPC783250853779
In Stock: 5300more info
|
BrandIDEAL
MFG #85-377
Werner Part #4175895
UPC783250853779
Product Description
IDEAL Modular Plug, 8-Postion 8-Contact RJ45 Feed-Thru, Twisted Pair Cable, 0.28 in OD Cable, Solid/Stranded Conductor, 24 to 23 AWG Conductor, Cat 6 LAN Category, 100 Ohm Impedance, Clear, Plastic
Attributes
Documents
Features
Applications
Attributes
Cable Outer Diameter0.28 in
ColorClear
Conductor size24 to 23 AWG
Conductor TypeSolid/Stranded
Country of OriginTW
GTIN00783250853779
Impedance100 Ohm
LAN_CategoryCat 6
ManufacturerIdeal Industries
MaterialPlastic
Package TypeEACH
Type8-Postion 8-Contact RJ45 Feed-Thru
Type of CableTwisted Pair
Documents
Features
- New feed-through design simplifies connector to cable assembly
- Flush cut of excess conductors minimizes inadvertent contact outside of the plug
- Designed for best performance when used with the IDEAL FT-45 crimp tool (30-495)
- 8-position, 8-contact RJ45 modular plug for cat 5e, 100 Ohm balanced twisted pair 250 MHz cables
- 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
Applications
Designed to work seamlessly with IDEAL FT-45ā¢ Modular Plug Crimp Tool. Also compatible for crimping (no cutting of conductors) in the IDEAL Telemasterā¢ crimping tools.
Three prong contact design for use with solid or stranded 23-24 AWG insulated copper conductors up to 0.041" in diameter.
Accepts outer jacket cable diameters up to .280"
Permanent connection - once crimped they cannot be reused
Primary strain relief support retains cable jacket and minimizes conductor movement once crimped.
