TCI KDRF2L

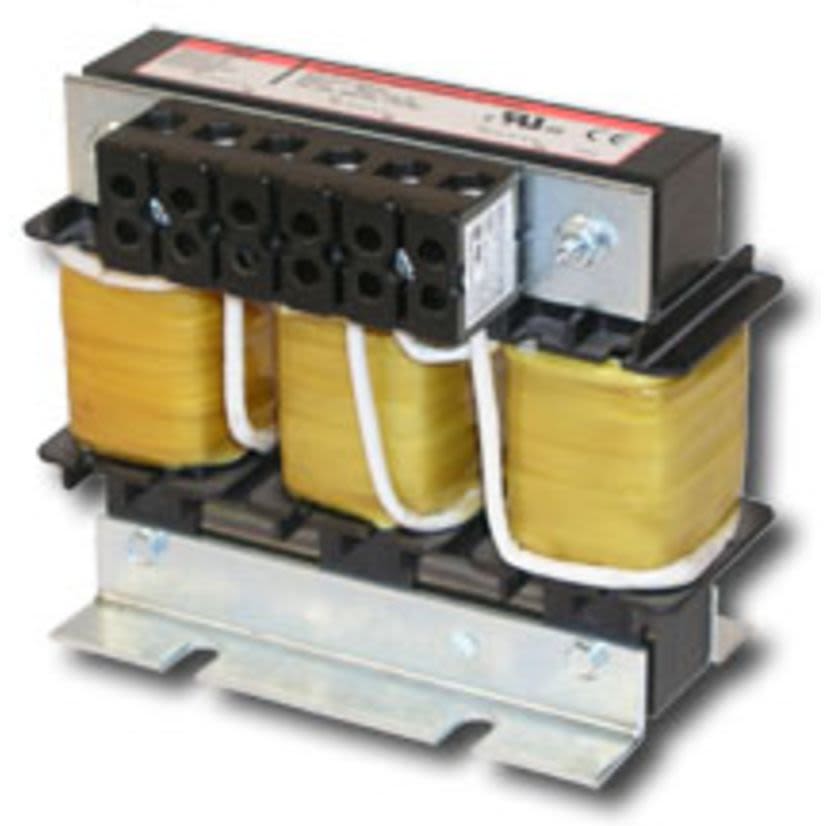

TCI KDRF2L Low Impedance Optimized Drive Reactor, 480 V AC, 65 A, 50 hp, 7 in H x 9 in W
TCI KDRF2L
TCI KDRF2L Low Impedance Optimized Drive Reactor, 480 V AC, 65 A, 50 hp, 7 in H x 9 in WNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
TCI Drive Reactor, Low Impedance Optimized, Series: KDR, 480 V AC, 65 A, 50 hp, 3 ph, 7 in Height, 9 in Width, 6 in Depth, Open Enclosure, Surface Mounting
Attributes
Documents
Applications
Features
Warranty
Attributes
Country of OriginUS
Depth6 in
Enclosure TypeOpen
Height7 in
Horsepower50 hp
ManufacturerTCI
Mounting TypeSurface
Phase3
SeriesKDR
Width9 in
Documents
Applications
Oil and Gas Pumps, Irrigation Fields, Farms, Wastewater Treatment Plants, HVAC, Pulp and Paper, Steel Industry, Machining and Extruders
Features
- The KDR line reactor offers impedance against the flow of harmonics and other high frequencies that can cause tripping and equipment failure
- Extend the life of the motor on the output of the VFD
- Protect other equipment on the line from operational issues caused by voltage distortion
- Dramatically increase drive uptime by reducing the likelihood of the drive tripping
- Reduce motor heating and audible noise
- Increase system productivity
- Reduce nuisance tripping
- Reduce voltage notching
- Reduce harmonic distortion
- Reduce cross-talk
- Protect components from damage
- Improve voltage phase to phase imbalance
- Improving true power factor
- 115 deg C temperature rise
- Terminal block
Warranty
Limited
