Superior Essex 77-246-2B

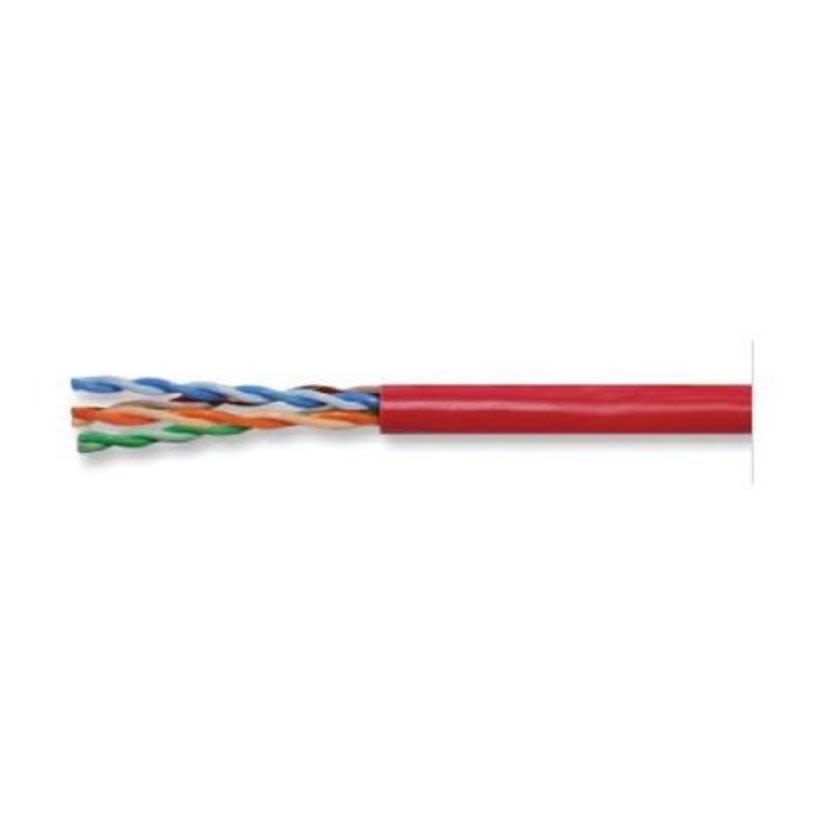

SUPERIOR ESSEX 77-246-2B Type CMP Cat 6 UTP Plenum Cable, 300 V AC, (4 Pairs) 23 AWG Annealed Solid Copper Conductor, 1000 ft L
Superior Essex 77-246-2B
SUPERIOR ESSEX 77-246-2B Type CMP Cat 6 UTP Plenum Cable, 300 V AC, (4 Pairs) 23 AWG Annealed Solid Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
BrandSuperior Essex
MFG #77-246-2B
Werner Part #4085039
Non-stock product. Available to order - lead time may vary.
BrandSuperior Essex
MFG #77-246-2B
Werner Part #4085039
Product Description
SUPERIOR ESSEX Cable, Type CMP Cat 6 UTP Plenum, Series: 77 Series, 300 V AC, 4 Pairs Conductors, Annealed Solid Copper Conductor, 23 AWG Conductor, 0.2 in OD, 1000 ft Length, FEP Insulation, PVC Jacket, Blue Jacket
Attributes
Documents
Applications
Features
Attributes
Conductor size23 AWG
Conductor TypeAnnealed Solid Copper
Insulation MaterialFEP
Jacket ColorBlue
Jacket MaterialPVC
ManufacturerSuperior Essex
Number of Conductors4 Pairs
Outside Diameter0.2 in
Package Type27/PT
Series77 Series
TypeType CMP Cat 6 UTP Plenum
Voltage Rating300 V AC
Documents
Applications
10 BASE-T Through 1000 BASE-T Ethernet, Power over Ethernet (PoE) - IEEE 802.3af, PoE+ - IEEE 802.3at Type 1 and 2, ATM and Token Ring
Features
- Health product Declaration (HPD)
- Contributes toward 1 LEED point under the material and resources credit (MRc)
- BrakeBox payout control system
- Offers an overview of the sustainability of a product, its packaging and manufacturing
- Provides cost-effective solution
- CableID alpha numeric code printed every 2 ft
- Adjustable tension control on reel prevents over spin and entangling of cable
- QuickCount marking system in feet and meters
- Allows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable
- ColorTip circuit identification system
- Provides remaining length of cable on reel
- Easily identifiable conductor mates even in low light environments
- Easily identifies jacket colors
