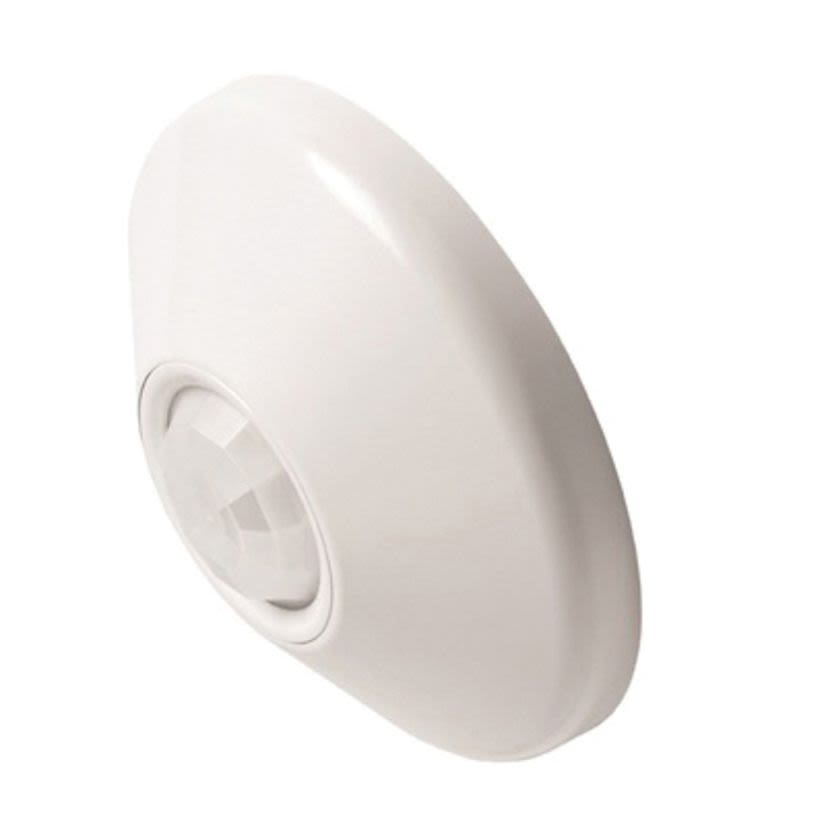

Sensor Switch CMR 10
Sensor Switch CMR 10 CMR Line Voltage Ceiling Mount Occupancy Sensor, 120/277 V AC, PIR Sensor, 32 ft Coverage, 360 deg Viewing, Ceiling Mounting
🚚 Ships Quickly from Acuity
Sensor Switch CMR 10
Sensor Switch CMR 10 CMR Line Voltage Ceiling Mount Occupancy Sensor, 120/277 V AC, PIR Sensor, 32 ft Coverage, 360 deg Viewing, Ceiling MountingNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Sensor Switch, CMR 10, Ceiling Mount Occupancy Sensor, Line Voltage, Series: CMR, 120/277 V AC, 1/4 hp Power, PIR Sensor, 32 ft Coverage, 360 deg Viewing, 30 s to 20 min Time Delay, 50/60 Hz Response, Wired Connection, Ceiling Mounting, -10 to 71 deg C, Plastic, White, 4.55 in Dia x 1.55 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
ColorWhite
Connection TypeWired
Country of OriginMX
Coverage32 ft
Dimensions4.55 in Dia x 1.55 in D
ManufacturerAcuity Brands
MaterialPlastic
Mounting TypeCeiling/Flush
Package TypeEACH
Power Rating1/4 hp
Response Frequency50/60 Hz
Sensor TypePIR
SeriesCMR
Temperature Rating-10 to 71 deg C
Time Delay30 s to 20 min
TypeLine Voltage
Viewing Angle360 deg
Voltage Rating120/277 V AC
Documents
Applications
Automotive and Parking, Education, Government, Healthcare, Hospitality, Residential, Retail, Roadways, Bridges and Tunnels, Sports and Recreation, Manufacturing, Offices and Banks, Power and Gas, Religious, Transportation and Warehouse Applications
Warranty
5-year limited warranty
Features
- The Sensor Switch CMR 10 is a unique line voltage sensor that easily mounts directly to a ceiling and offers a multitude of configurations to address many applications
- With a variety of lens options, CMR sensors utilize 100% passive Infrared detection and is powered directly from line voltage without the need of a power pack
- Programming CMR sensor setting can easily be achieved via push button or optional flash programming via the SensorSwitch VLP Mobile App
- With either programing method, the user can change time delay
- RELAY - Self-contained relay (no power pack needed)
- MOBILE APP - Enjoy the flexibility and convenience of programming sensor settings with your smartphone using the Sensor Switch Mobile App through camera flash programming
- COVERAGE - 360 deg conical shaped pattern provides 24 foot radial coverage when mounted at 9 ft, 7 to 15 foot mounting heights provide 16 to 36 foot radial coverage
- MOTION DETECTION - Best choice for large motion detection
- TIMER MODE - 100 hr lamp burn-in timer mode
