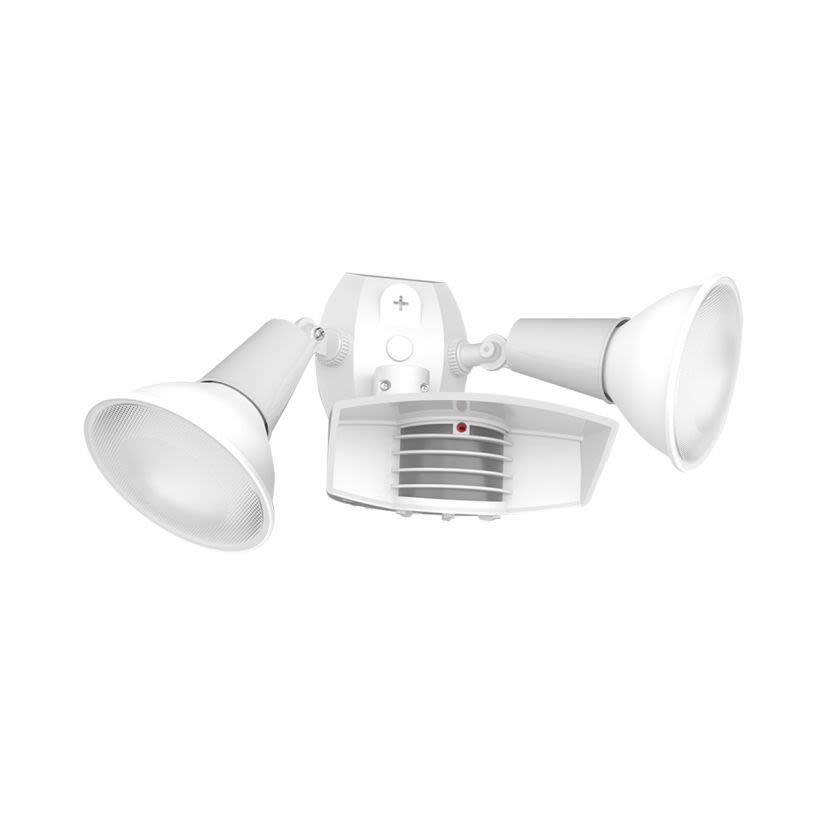

RAB STL110RW
RAB Lighting STL110RW Stealth Economy Outdoor Sensor Light, (2) Incandescent Lamp, 1000 W Fixture, 120 V AC, Aluminum Housing
RAB STL110RW
RAB Lighting STL110RW Stealth Economy Outdoor Sensor Light, (2) Incandescent Lamp, 1000 W Fixture, 120 V AC, Aluminum HousingNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
RAB Lighting Outdoor Sensor Light, Economy, Series: Stealth, 120 V AC, 1000 W Fixture, 8 A, Incandescent Lamp, 150 W Lamp, Medium Lamp Base, 2 Lamps, Vandal-Resistant Lens, Aluminum Housing Material, 110 deg Sensing, 5 s to 12 min Time Delay, 110 deg Detection, 15-1/2 in L x 4-5/8 in W Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorGray
Country of OriginMY
Dimensions15-1/2 in L x 4-5/8 in W
FinishCopper Nickel Plated
Fixture Wattage1000 W
Housing MaterialAluminum
Lamp Base TypeMedium
Lamp TypeIncandescent
Lamp Wattage150 W
Lens TypeVandal-Resistant
ManufacturerRAB Lighting Inc.
MaterialGlazed Porcelain
Number of Lamps2
Package TypeEACH
SeriesStealth
TypeEconomy
Type / StyleEconomy
Voltage Rating120 V AC
Documents
Applications
Outdoor and Wet Location Applications
Warranty
10 years
Features
- 1000 W incandescent at 120 V, 8 A switching capacity
- Protected manual override with auto-reset
- Radio frequency immunity
- Color matched vandal-resistant lens and grill
- Two flip logic prevents activation by momentary power outages
- Override resets to auto after 6 hr or at dawn, no extra wiring needed
- Can be wired in parallel
- Adjustable from 100 to 30% wide sensitivity control
- LED detection and "on guard" indicator
- Deactivates lights during daylight, fully adjustable for 24 hr operation or custom applications
- Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures
- Circuits fully shielded for maximum radio frequency immunity RF immunity
- Minimizes false triggers, 1/2 in NPS threaded
- Keeps sensing pattern level for fast, error free installation horizontal lock, no tool joints
- Precision die cast aluminum, 1/2 in NPS threaded arm with serrated locking swivel fits all standard mounting boxes and covers
- Customized press apply lens mask included to reduce coverage easily
- Stealth sensor with twin die cast R90 PAR38 floods pre-wired and assembled on universal CU4 cover plate
- Lamps not supplied
- Non-fixture
Specifications
Detection Range: 110 deg
