Pos-E-Kon FS124B

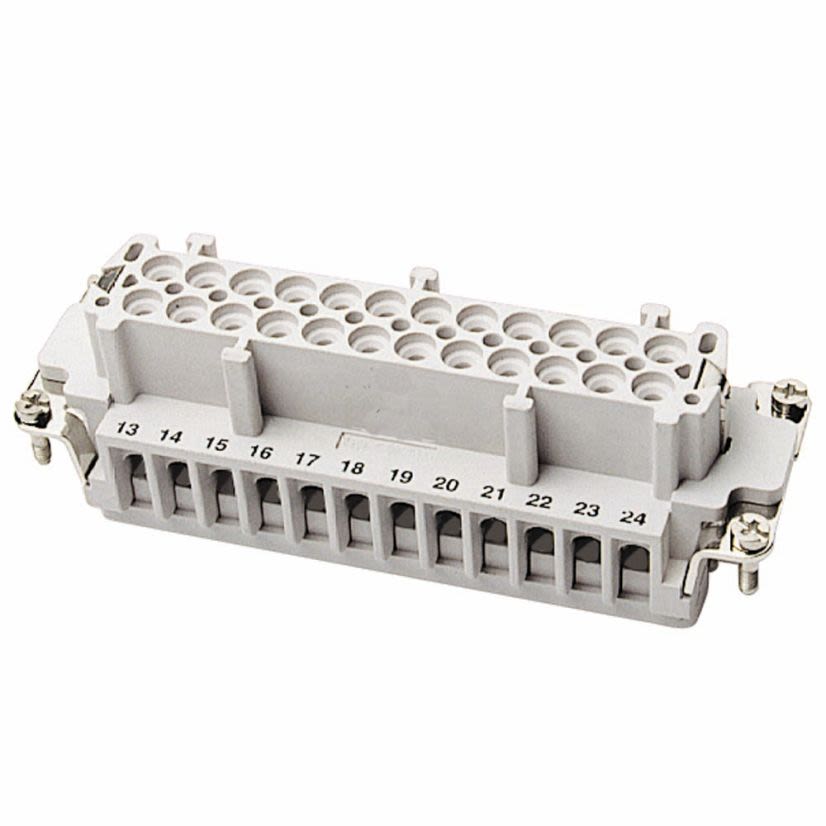

Pos-E-Kon FS124B B Series Standard Terminal Insert, 24 Positions, 20 to 14 AWG Wire, Female Screw Connection, Glass Filled Thermoplastic
Pos-E-Kon FS124B
Pos-E-Kon FS124B B Series Standard Terminal Insert, 24 Positions, 20 to 14 AWG Wire, Female Screw Connection, Glass Filled ThermoplasticIn Stock: 10more info
|
BrandPos-E-Kon
MFG #FS124B
Werner Part #64721
UPC786210116402
In Stock: 10more info
|
BrandPos-E-Kon
MFG #FS124B
Werner Part #64721
UPC786210116402
Product Description
Pos-E-Kon Terminal Insert, Standard, Series: B Series, 24 Positions, 20 to 14 AWG Wire, Female Screw, For Use With: B Series Connector, -40 to 257 deg F, 16 A, 600 V AC, Glass Filled Thermoplastic
Attributes
Documents
Applications
Features
Specifications
Attributes
Connection TypeFemale Screw
Country of OriginDE
ManufacturerABB
MaterialGlass Filled Thermoplastic
Number of Positions24
SeriesB Series
Size of Wire20 to 14 AWG
Suitable For Use WithB Series Connector
Temperature Rating-40 to 257 deg F
TypeStandard
Type / StyleSTANDARD
Documents
Applications
For panel base
Features
- 24 contacts with ground
- Integral screw terminal contacts that provide for easy terminal wiring and fast assembly
- Allows single access direction panel build wiring and easy terminal id for service and testing
- Standard wire protection saddles prevent cutting of strands during assembly
- Standard size screw terminal
- Use small blade screwdriver to push wire entry tab in for easy contact removal
Specifications
16 A, 600 V AC
