O-Z/Gedney S-4000-2

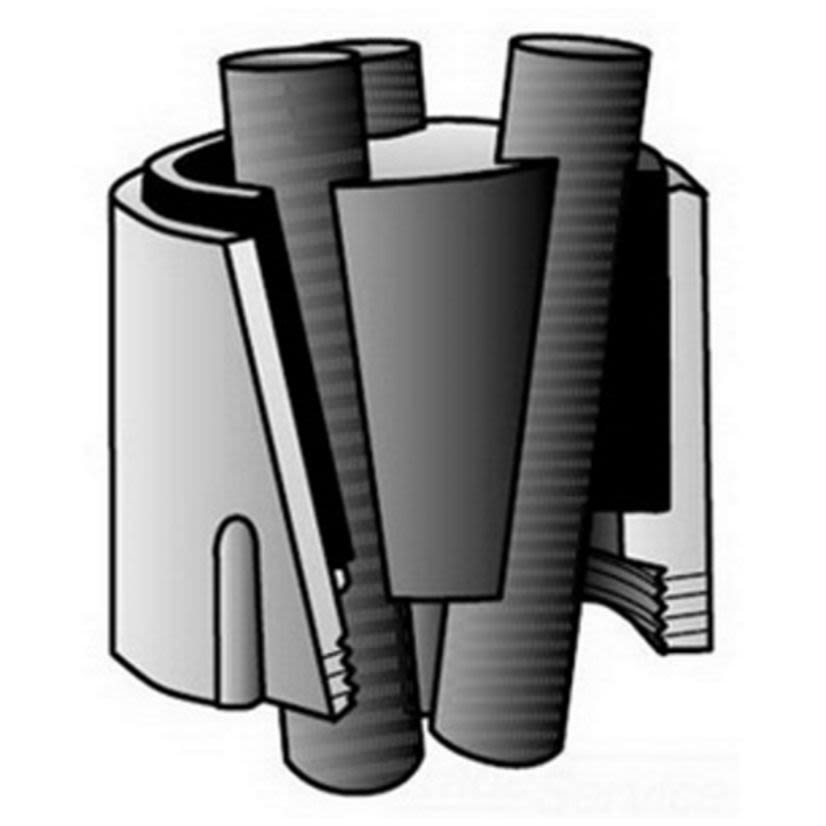

O-Z/Gedney S-4000-2 1-Piece Retrofit Cable Support With Pozi-Grip S-Style Wedging Plug, 4 in, Surface Mount, Ductile Iron/Malleable Iron
O-Z/Gedney S-4000-2
O-Z/Gedney S-4000-2 1-Piece Retrofit Cable Support With Pozi-Grip S-Style Wedging Plug, 4 in, Surface Mount, Ductile Iron/Malleable IronNon-stock product. Available to order - lead time may vary.
BrandO-Z/Gedney
MFG #S-4000-2
Werner Part #174315
UPC783126022674
Non-stock product. Available to order - lead time may vary.
BrandO-Z/Gedney
MFG #S-4000-2
Werner Part #174315
UPC783126022674
Product Description
O-Z/Gedney Cable Support, 1-Piece Retrofit, Series: S Series, 4 in Size, Surface Mounting, For Use With: EMT/IMC and Rigid Conduit, Ductile Iron/Malleable Iron, Hot Dipped Galvanized Finish, 5.63 in Dia x 3.88 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Country of OriginUS
Dimensions5.63 in Dia x 3.88 in H
FinishHot Dipped Galvanized
Load Capacity300 lb
ManufacturerEmerson Electric
MaterialDuctile Iron/Malleable Iron
Mounting TypeChannel
Package TypeEACH
SeriesS Series
Size4 in
Suitable For Use WithEMT/IMC and Rigid Conduit
Type1-Piece Retrofit
Type / Style1-Piece Retrofit
Documents
Applications
For 2/3-wires indoors at voltages to 600 VAC
Warranty
30 days
Features
- Threaded for rigid conduit and IMC
- Use with all types of insulations at all voltages
- The fastest and easiest type cable support to install
- The knurled insulating inner surface and one piece impregnated hardwood pOZi-grip plug provide positive support well in excess of code requirements
- Body only can be ordered separately, for installation prior to wire pulling, plug only can be ordered later, once wires are in place
- If mounting on a non-metallic/non-grounded conduit, a LayIn-Lug grounding lug should be mounted on cable support body
- For threadless rigid conduit, threadless IMC, or EMT, the body can be attached to the male threads of a set screw or compression connector
- For PVC conduit, use a PVC terminal adapter
Specifications
10 in-lb Max Torque
