nVent ILSCO PDB-55-500-1

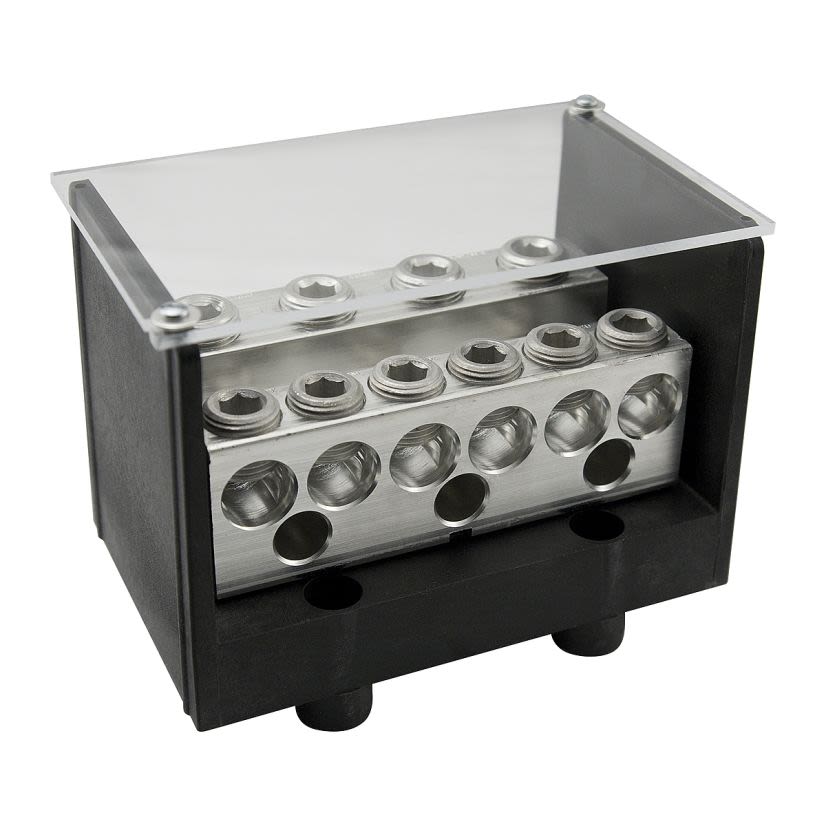

ILSCO ClearChoice PDB-55-500-1 Type PDB Dual Rated Mechanical Power Distribution Block, 600 V AC, 1600 A, 1 Pole, 3/0 AWG to 500 kcmil Wire, Aluminum Alloy
nVent ILSCO PDB-55-500-1
ILSCO ClearChoice PDB-55-500-1 Type PDB Dual Rated Mechanical Power Distribution Block, 600 V AC, 1600 A, 1 Pole, 3/0 AWG to 500 kcmil Wire, Aluminum AlloyNon-stock product. Available to order - lead time may vary.
BrandnVent ILSCO
MFG #PDB-55-500-1
Werner Part #237654
UPC783669711554
Non-stock product. Available to order - lead time may vary.
BrandnVent ILSCO
MFG #PDB-55-500-1
Werner Part #237654
UPC783669711554
Product Description
ILSCO ClearChoice Power Distribution Block, Type PDB Dual Rated Mechanical, 600 V AC, 1600 A, 1 Pole, 5 Primary Connections/Pole, 5 Secondary Connection/Pole, 3/0 AWG to 500 kcmil Wire, 10 kA Short Circuit, Aluminum Alloy, Electro-Plated Tin, Black, 6-7/32 in L x 4 in W x 4-3/8 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Actuator TypeToggle
ColorBlack
Connection TypeLine/Load
Country of OriginMX
Dimensions6-7/32 in L x 4 in W x 4-3/8 in H
FinishElectro-Plated Tin
FrameL
Frequency Rating50/60 Hz
ManufacturerECM Industries
MaterialAluminum Alloy
Number of Poles1
Package Height4.02 in
Package Length6.32 in
Package TypeEACH
Package Weight4.16 lb
Package Width4.19 in
Primary Connection/Pole5
Secondary Connection/Pole5
SeriesG Series
Short Circuit Current Rating10 kA
Size of Wire3/0 AWG to 500 kcmil
Temperature Rating40 deg C
Trip Range500 to 2500
Trip TypeFixed Thermal/Fixed Magnetic
TypeType PDB Dual Rated Mechanical
Type / StyleType PDB Dual Rated Mechanical
Voltage600 VAC
Applications
Tap Connector Applications
Features
- Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains
- Range taking - provides tapping flexibility over a broad wire range
- Electro tin plated provides low contact resistance
- Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only
- Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
- UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- Range taking for reduced inventories and flexibility
- 3/8 in hex primary, 3/8 in hex secondary
- 90 deg C temperature rating
- Block W
- (5) box lug primary, (5) box lug secondary
- 3/0 AWG to 500 kcmil primary and secondary wire size
- Valox insulating base
- UL assigned short circuit current rating
- Provides great flexibility in using the connector as an in-line splice or to reduce conductor size
- Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1
