nVent ILSCO PDB-16-2/0-1

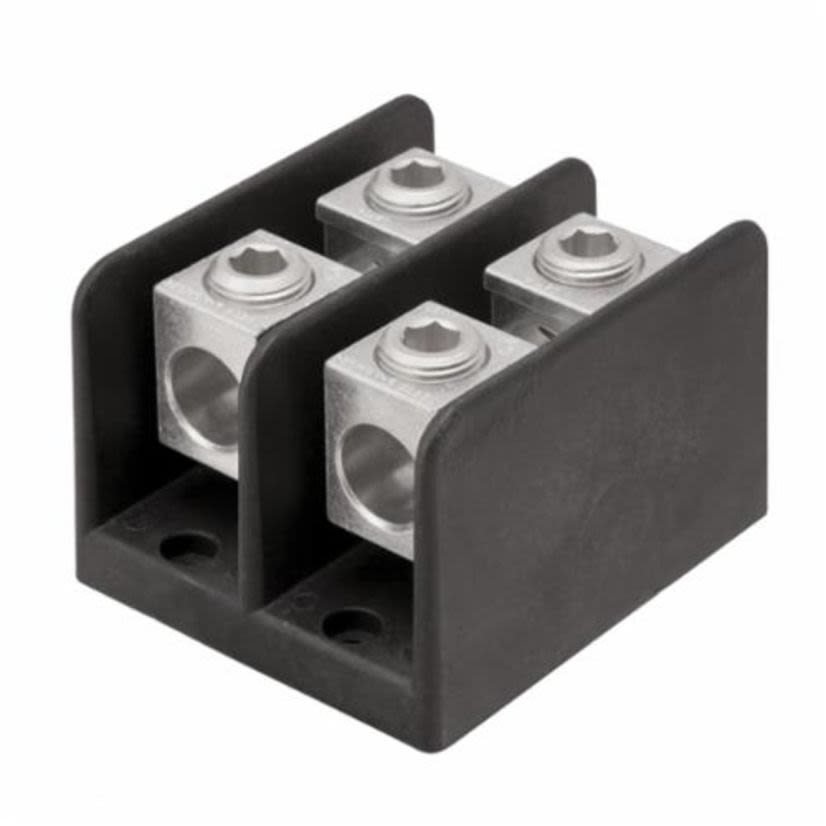

ILSCO ClearChoice PDB-16-2/0-1 Type PDB Dual Rated Power Distribution Block, 600 V AC, 175 A, 1 Pole, 12 to 2/0 AWG, 14 to 4 AWG Wire, Aluminum Alloy
nVent ILSCO PDB-16-2/0-1
ILSCO ClearChoice PDB-16-2/0-1 Type PDB Dual Rated Power Distribution Block, 600 V AC, 175 A, 1 Pole, 12 to 2/0 AWG, 14 to 4 AWG Wire, Aluminum AlloyNon-stock product. Available to order - lead time may vary.
BrandnVent ILSCO
MFG #PDB-16-2/0-1
Werner Part #3787047
UPC783669710250
Non-stock product. Available to order - lead time may vary.
BrandnVent ILSCO
MFG #PDB-16-2/0-1
Werner Part #3787047
UPC783669710250
Product Description
ILSCO ClearChoice Power Distribution Block, Type PDB Dual Rated, 600 V AC, 175 A, 1 Pole, 1 Primary Connections/Pole, 6 Secondary Connection/Pole, 12 to 2/0 AWG, 14 to 4 AWG Wire, 10 kA Short Circuit, Aluminum Alloy, Electro-Plated Tin, Black, 1-27/32 in L x 4 in W x 2-5/8 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
ColorBlack
Country of OriginMX
Dimensions1-27/32 in L x 4 in W x 2-5/8 in H
Enclosure TypeNEMA 3R
FinishElectro-Plated Tin
Frequency Rating60 Hz
ManufacturerECM Industries
MaterialAluminum Alloy
Mounting TypeSurface
Number of Poles1
Package Height1.84 in
Package Length4 in
Package TypeEACH
Package Weight0.66 lb
Package Width2.62 in
Phase3 ph
Primary Connection/Pole1
Secondary Connection/Pole6
Short Circuit Current Rating10 kA
Size of Wire12 to 2/0 AWG, 14 to 4 AWG
Terminal TypeLine/Load
TypeType PDB Dual Rated
Type / StyleType PDB Dual Rated
Voltage600 VAC
Applications
Tap Connector Applications
Features
- Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains
- Range taking - provides tapping flexibility over a broad wire range
- Electro tin plated provides low contact resistance
- Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only
- Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
- UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- Range taking for reduced inventories and flexibility
- 3/16 in hex primary, slot hex secondary
- 90 deg C temperature rating
- Block M
- (1) box lug primary, (6) box lug secondary
- Valox insulating base
- UL assigned short circuit current rating
- Provides great flexibility in using the connector as an in-line splice or to reduce conductor size
- Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1
