NextGen AP0121ANU.BK

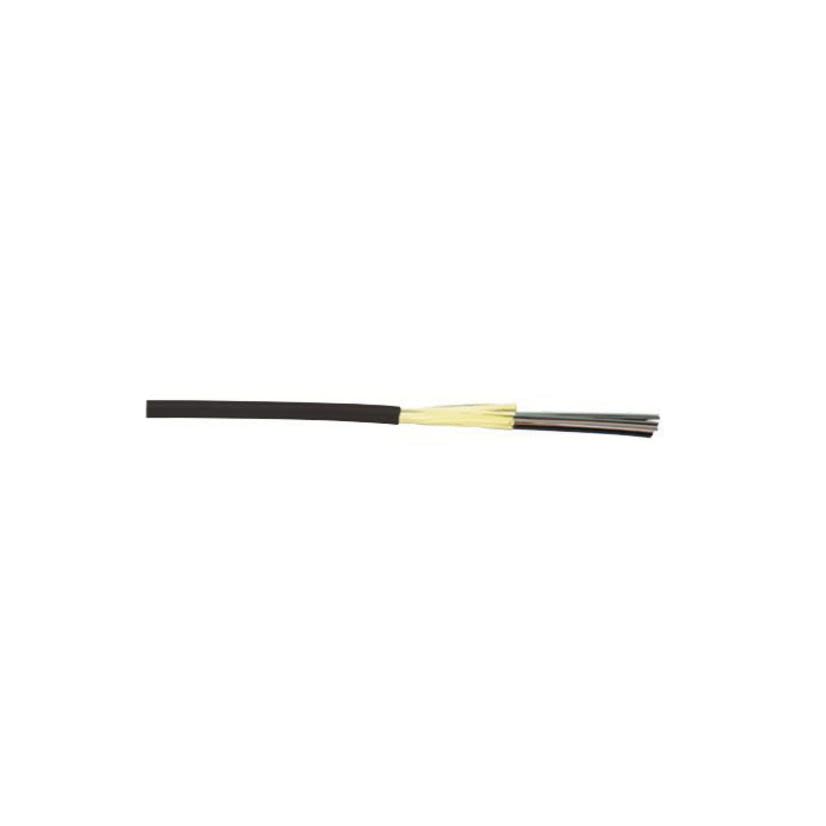

NextGen AP0121ANU.BK Type OFNP Single-Mode Fiber Optic Indoor/Outdoor Cable, 12 Fiber
NextGen AP0121ANU.BK
NextGen AP0121ANU.BK Type OFNP Single-Mode Fiber Optic Indoor/Outdoor Cable, 12 FiberIn Stock: 12661more info
|
In Stock: 12661more info
|
Product Description
NextGen Fiber Optic Indoor/Outdoor Cable, Type OFNP Single-Mode, 12 Fibers, 1 dB/km Attenuation, Black Jacket, -20 to 70 deg C
Attributes
Applications
Warranty
Features
Specifications
Attributes
Attenuation1 dB/km
Fiber Count12
Jacket ColorBlack
ManufacturerPrysmian
Temperature Rating-20 to 70 deg C
TypeType OFNP Single-Mode
Applications
For intrabuilding and interbuilding voice or data communication Back-Bones, outdoor use in ducts and underground conduits and installation in vertical riser and general horizontal applications
Warranty
12 Months
Features
- Dry water block cable core for fiber protection
- Direct termination of connectors on tight buffer
- Sub units are numbered for identification
- UV-resistant black jacket
- Sequential footage marked to facilitate installation
- Epoxy/glass rod central strength member aramid fiber yarn overall strength member
- Color coding per TIA/IEIA 598 B
- 20 X OD installation, 10 X OD in-service minimum bend radius
- 850 lb/in maximum crush resistance
- 400 lb installation, 120 lb in-service maximum tensile load
- Full spectrum, low water peak single mode with 900 um PVC buffer, ITU-T recommendation G.657.A1, IEC 60793-2-50 for B1.3 and B6_a1 class fibers, TIA/EIA-492CAAB and Telcordia GR-20-CORE, Issue 3
- Tight buffer SM, SMF-28 ultra fiber
Specifications
Standards/Approvals: ETL Listed Type OFNP, CSA FT6, TIA 568 C.3, ICEA S-104-696, GR-409, RoHS 2011/65/EU Compliant
