Mersen AJT40N

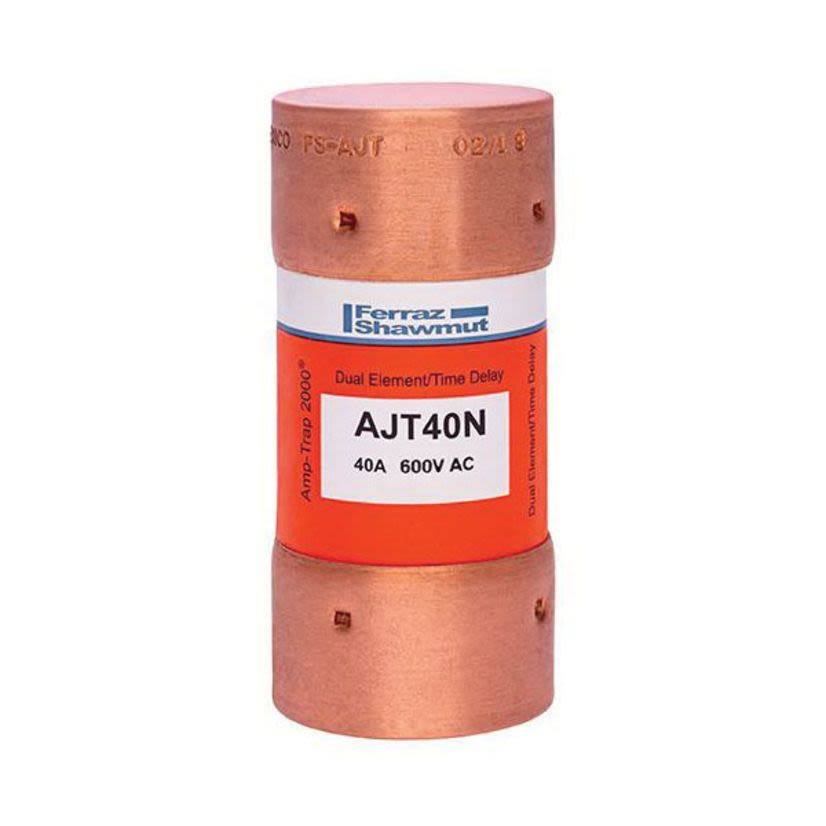

Mersen Amp-Trap 2000 AJT40N Low Voltage Time Delay Power Fuse, 40 A, 600 V AC/500 V DC, 200 kA AC/100 kA DC Interrupt, J Class
Mersen AJT40N
Mersen Amp-Trap 2000 AJT40N Low Voltage Time Delay Power Fuse, 40 A, 600 V AC/500 V DC, 200 kA AC/100 kA DC Interrupt, J ClassIn Stock: 53more info
|
In Stock: 53more info
|
Product Description
Mersen Amp-Trap 2000 Power Fuse, Low Voltage Time Delay, Series: AJT, Non-Indicating, Non-Rejection, 40 A, 600 V AC/500 V DC, 200 kA AC/100 kA DC Interrupt, Class: J, 50/60 Hz Frequency, Ferrule Terminal, Clip Mounting, Cylindrical Body, Dual Element, Glass Melamine Laminate, 1-1/16 in Dia x 2-3/8 in L Body
Attributes
Documents
Applications
Features
Specifications
Attributes
Body Size1-1/16 in Dia x 2-3/8 in L
Body TypeCylindrical
ClassJ
Country of OriginMX
ElementDual
Frequency Rating50/60 Hz
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating200 kA AC/100 kA DC
ManufacturerMERSEN
MaterialGlass Melamine Laminate
Mounting TypeClip
Package TypeEACH
Rejection/Non-RejectionNon-Rejection
SeriesAJT
Terminal TypeFerrule
Voltage Rating600 V AC/500 V DC
Documents
Applications
Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heating and General Loads, Transformers, Control Panels, Circuit Breaker Back-Up, Bus Duct and Load Centers
Features
- Non-indicating or solid state SmartSpot visual blown fuse indicator
- Time delay for motor starting and transformer inrush
- 300 kA interrupting rating - self-certified, UL witnessed tests
- Extremely current limiting for low peak let-thru current
- Non-indicating fuses suitable for use in NEC class I division 2 hazardous locations
- Recommended for Arc Flash energy reduction
- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns
- Unique Class J dimensions prevent replacement errors
- High-visibility orange label gives instant brand recognition
- Metal-embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High-grade silica filler ensures fast arc quenching
- Silver-plated copper terminal
Specifications
- IEC 60269-2-1
- CSA C22.2 No. 248.8
- CSA Class 1422-02 Guide 012636
- DC Listed to UL 248
- RoHS Compliant
- UL 248-8 File No. E2137
