Marley Engineered Products HUH1024M

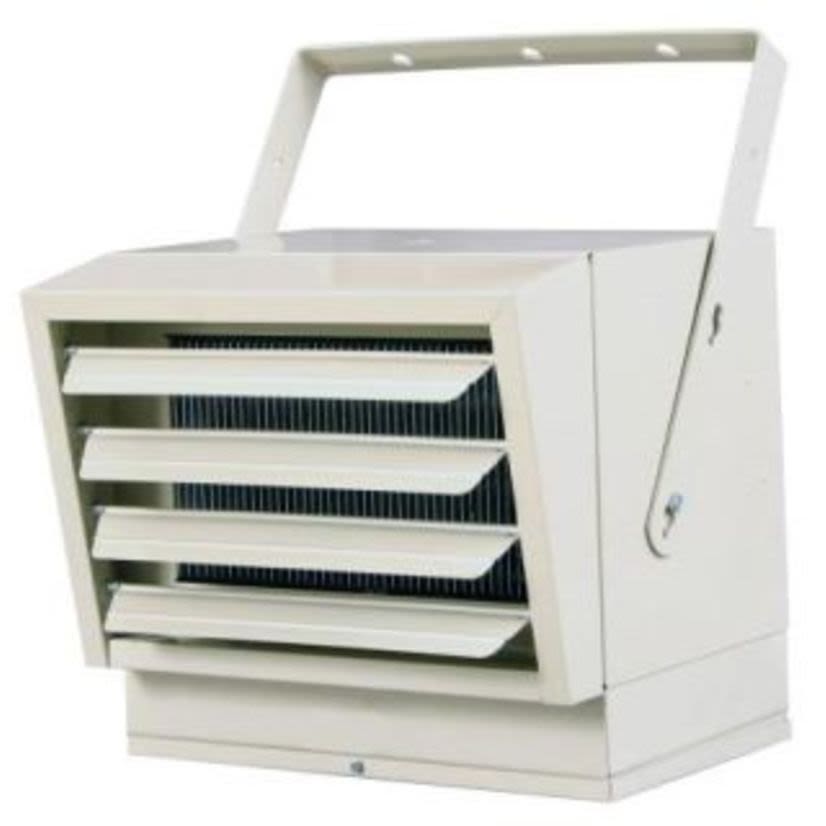

Berko HUH1024M 1 to 3-Phase Heavy Duty Line 6 Unit Heater, 10 kW, 240 V AC
Marley Engineered Products HUH1024M
Berko HUH1024M 1 to 3-Phase Heavy Duty Line 6 Unit Heater, 10 kW, 240 V ACNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Berko Unit Heater, 1 to 3-Phase Heavy Duty Line 6, Series: HUH, 240 V AC, 25.7 to 41.7 A, 10 kW Power, 500 cfm Flow Rate, 1550 rpm Speed, 63 deg F, Ceiling Mounting, 9 ft Mounting Height, Cold Rolled Steel, Beige, Polyester Powder Coated, 18 in W x 17-1/2 in D x 18 in H Dimensions
Documents
Applications
Features
Applications
Industrial, Large or Exposed Areas, Primary, Public Buildings, Service Stations, Stores, Supplementary, Warehouses, Workshops or Auxiliary Heat Source in Factories Applications
Features
- All motors and contactor coils are 240 V and operate on the secondary of a factory installed step-down power transformer on 480 V and 600 V heaters so a separate fan and motor control power source is not needed
- Automatic fan delay eliminates cold drafts on start-up and discharges residual heat from the heater body during shut down
- Steel fins are copper brazed to low-watt density, steel sheathed tubular heating elements 5 and 7
- Cabinet is finished with a polyester powder coating for excellent corrosion-resistance
- Element finished with aluminized paint for corrosion-resistance
- Fins and elements are arranged in a uniform grid pattern and fit closely into air discharge area to assure that all incoming air passes through heating element
- High limit cut off automatically shuts off current in the event of overheating and reactivates unit when temperature returns to normal
- For spaces that need plenty of heating power, unit heaters deliver
- They are strong enough to be used for primary heat and are versatile enough to integrate with existing ductwork or in standalone settings
- Specialized unit heaters fit into tight spaces with almost zero clearance
- 5 and 7.5 kW models also come equipped with ceiling mounting bracket for horizontal or vertical flow mounting or any position in between
- Uniform discharge of all heated air lowers internal operating temperatures and prolongs element life
