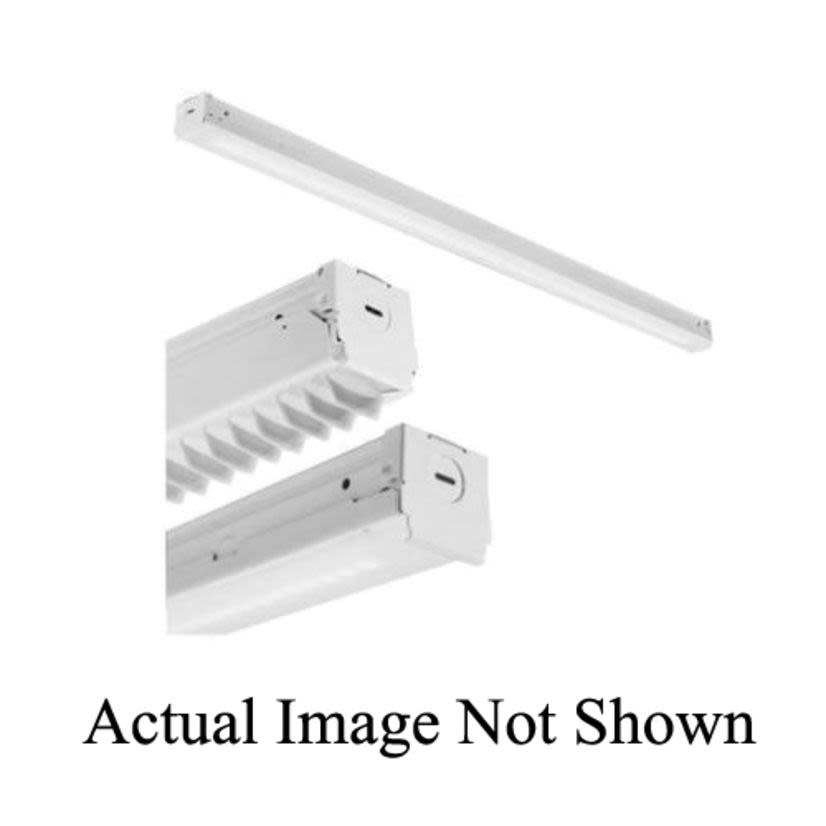

Lithonia Lighting TZL1N L96 10000LM FST MVOLT 40K 80CRI WH
Lithonia Lighting TZL1N L96 10000LM FST MVOLT 40K 80CRI WH TZL1N Compact Low Profile T8 Strip Light Fixture, (2) Lamps LED Lamp, 75 W Fixture, 120 to 277 V AC
Lithonia Lighting TZL1N L96 10000LM FST MVOLT 40K 80CRI WH
Lithonia Lighting TZL1N L96 10000LM FST MVOLT 40K 80CRI WH TZL1N Compact Low Profile T8 Strip Light Fixture, (2) Lamps LED Lamp, 75 W Fixture, 120 to 277 V ACNon-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #TZL1N L96 10000LM FST MVOLT 40K 80CRI WH
Werner Part #4206819
UPC190887791914
Non-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #TZL1N L96 10000LM FST MVOLT 40K 80CRI WH
Werner Part #4206819
UPC190887791914
Product Description
Lithonia Lighting, TZL1N L96 10000LM FST MVOLT 40K 80CRI WH, Strip Light Fixture, Compact Low Profile T8, Series: TZL1N, 120 to 277 V AC, 75 W Fixture, LED Lamp, 2 Lamps, 60000 hr Average Life, White Light, 4000 K Color Temperature, 80 CRI, Acrylic Glass Lens, 10000 Lumens, Surface Mounting, Steel Housing Material, 46 in L x 98-1/2 in W x 31-1/16 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Average Life60000 hr
Ballast TypeClass 2/Constant Current
Color Rendering Index (CRI)80
Color Temperature4000 K
Country of OriginMX
Dimensions46 in L x 98-1/2 in W x 31-1/16 in H
Fixture Wattage75 W
Housing FinishWhite
Housing MaterialSteel
Lamp TypeLED
Lamp Wattage52 W
Lens TypeAcrylic Glass
Light ColorWhite
Lumen10000 Lumens
ManufacturerAcuity Brands
Mounting TypeArm
Number of Lamps2
SeriesTZL1N
TypeCompact Low Profile T8
Type / StyleCompact Low Profile
Voltage Rating120 to 277 V AC
Documents
Applications
Automotive, Parking, Education, Government, Healthcare, Hospitality, Manufacturing, Offices, Banks, Power, Gas, Religious, Residential, Retail, Sports, Recreation, Transportation and Warehouse Applications
Features
- Built on the compact, low profile Z strip channel, this LED strip offers long life, several color temperatures, lumen outputs and lengths
- Lumen output up to 2000 lumens per foot
- Luminaire should be installed in applications where ambient temperatures do not exceed 86 deg F (30 deg C)
- Tool-less channel cover for easy installation
- Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options
- Three-point aligner locks in place for easy continuous row mounting
- For use in damp locations between -4 to 86 deg F
- Tandem double length fixtures
- Ideal for new construction and retrofit applications in both T5 and T8 lengths
- Compact design channel and cover are formed from code gauge cold-rolled steel
- Five stage iron phosphate pretreatment assure superior paint adhesion and rust resistance
- Utilizes high output LED integrated on a two-layer circuit board, ensuring cool running operation
- LED static lamp
- The ZL series LED strip lights provide aesthetic and performance choices, integrated controls options and innovative mounting accessories
- When paired with occupancy sensors, dimming and intuitive controls, you save energy and extend the life of the fixtures
