Lithonia Lighting NPOD GFX WH

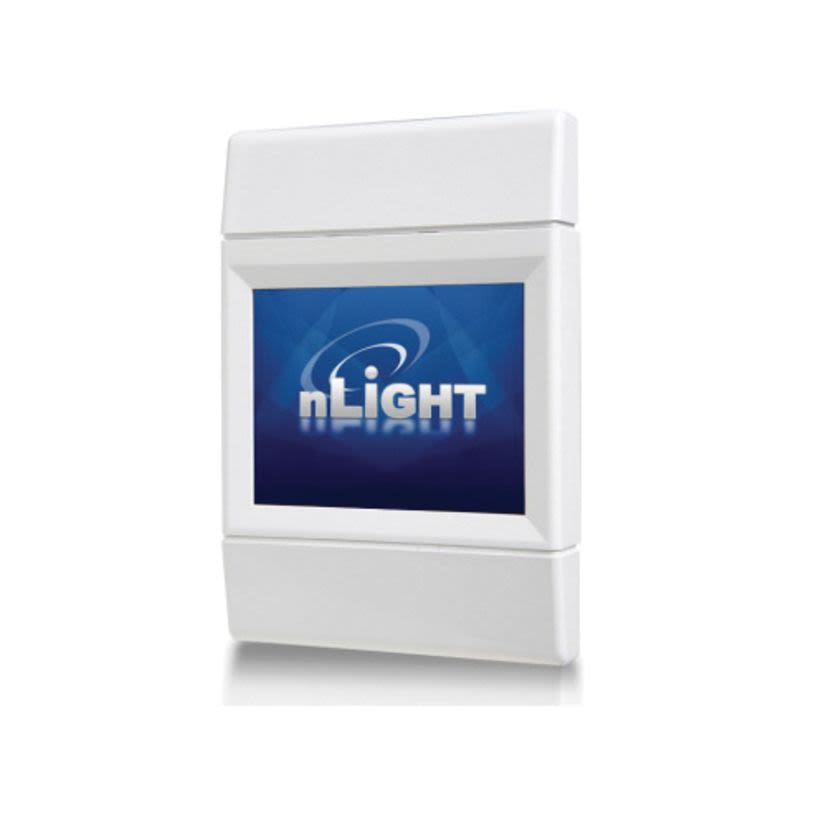

Sensor Switch NPOD GFX WH nPOD GFX Graphic Wall Pod, 120/277 V AC, 60 mA, White
Lithonia Lighting NPOD GFX WH
Sensor Switch NPOD GFX WH nPOD GFX Graphic Wall Pod, 120/277 V AC, 60 mA, WhiteNon-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #NPOD GFX WH
Werner Part #4164528
UPC745977225239
Non-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #NPOD GFX WH
Werner Part #4164528
UPC745977225239
Product Description
Sensor Switch Graphic Wall Pod, Series: nPOD GFX, 120/277 V AC, 60 mA, Wall Mount, White, 5.06 in H x 3.5 in W x 0.69 in D
Attributes
Documents
Features
Attributes
ColorWhite
Country of OriginMX
Dimensions5.06 in H x 3.5 in W x 0.69 in D
ManufacturerAcuity Brands
Mounting TypeWall
SeriesnPOD GFX
Type / StyleWallstation
Voltage Rating120/277 V AC
Documents
Features
- Enables user customization of all presets and ON/OFF/dim controls
- Enables programming of switch tracking channels of devices in zone
- Front assessable micro USB connector for simple laptop connectivity
- Optional password protection for controls and setup screens
- Customizable screen saver image
- Onboard help screens
- Single gang switch box or low voltage ring mounting
- RJ45 ports network connection
- 15/24 VDC input voltage
- PS-150 via terminal connections included
- Each screen displays two controls with simple left/right paging style navigation to access other screens, A control is activated simply by touching the screen
- The unit instantly communicates the desired action throughout the connected zone of nLight devices
- All devices programmed to listen for (track) commands from switches on a respective channel will react by turning connected lights ON/OFF or by dimming them accordingly
- To facilitate simple commissioning of a zone, the graphic wallpod automatically discovers and displays a list of all devices with relays and dimming outputs within its zone
- The switch tracking settings on these devices can then be modified from the graphic wallPod, lighting presets consist of a combination of user configured settings (on/off or dim level) for each control that can be activated via a single button
- The Graphic WallPod (nPOD GFX) provides an elegant and sophisticated touchscreen scene controller designed for use in any space using the nLight lighting controls featuring a 3.5 in, high-resolution touchscreen that is easy to view and simple to use
