Hubbell Wiring Device - Kellems HBL8411C

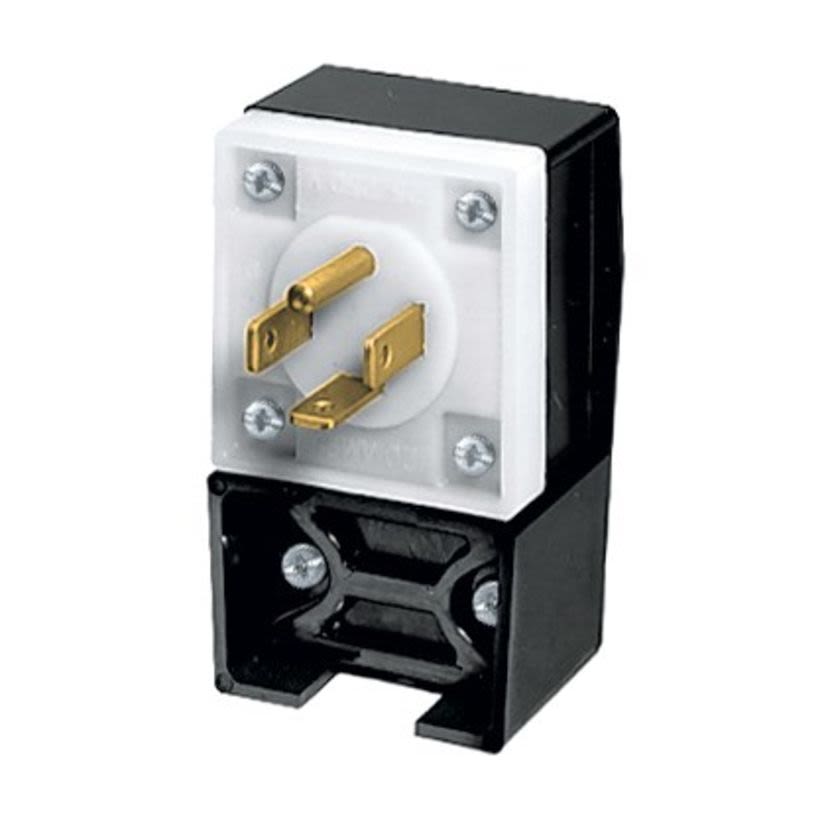

Hubbell Wiring Device-Kellems HBL8411C 1-Phase Grounding Male Standard Cord Mount Straight Blade Plug, 125/250 V AC, 20 A, 3 Poles, 4 Wires, Black
Hubbell Wiring Device - Kellems HBL8411C
Hubbell Wiring Device-Kellems HBL8411C 1-Phase Grounding Male Standard Cord Mount Straight Blade Plug, 125/250 V AC, 20 A, 3 Poles, 4 Wires, BlackOut of Stockmore info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL8411C
Werner Part #617631
UPC783585013114
Out of Stockmore info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL8411C
Werner Part #617631
UPC783585013114
Product Description
Hubbell Wiring Device-Kellems, HBL8411C, Straight Blade Plug, 1-Phase Grounding Male Standard Cord Mount, 125/250 V AC, 20 A, 2 hp, 3 Pole, 4 Wires, 14-20P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.39 to 0.775 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black, 3.64 x 2.34 x 1.61 in Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorBlack
Country of OriginUS
Dimensions3.64 x 2.34 x 1.61 in
Enclosure TypeIP20
GradeCommercial/Industrial
Horsepower2 hp
ManufacturerHubbell
MaterialComposite
NEMA Rating14-20P
Number of Poles3
Number of Wires4
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Grounding Male Standard Cord Mount
Type / StyleGrounding Male Standard
Voltage Rating125/250 V AC
Documents
Features
- Angled, low profile
- 4-position assembly
Specifications
Standards/Approvals: UL 498, File No. E1706 Listed, UL 94-HB Flammability Rating|CSA C22.2 No. 42, 280 | NEMA WD1/WD5/ WD6 Compliant
