Hubbell Wiring Device - Kellems HBL5965VY

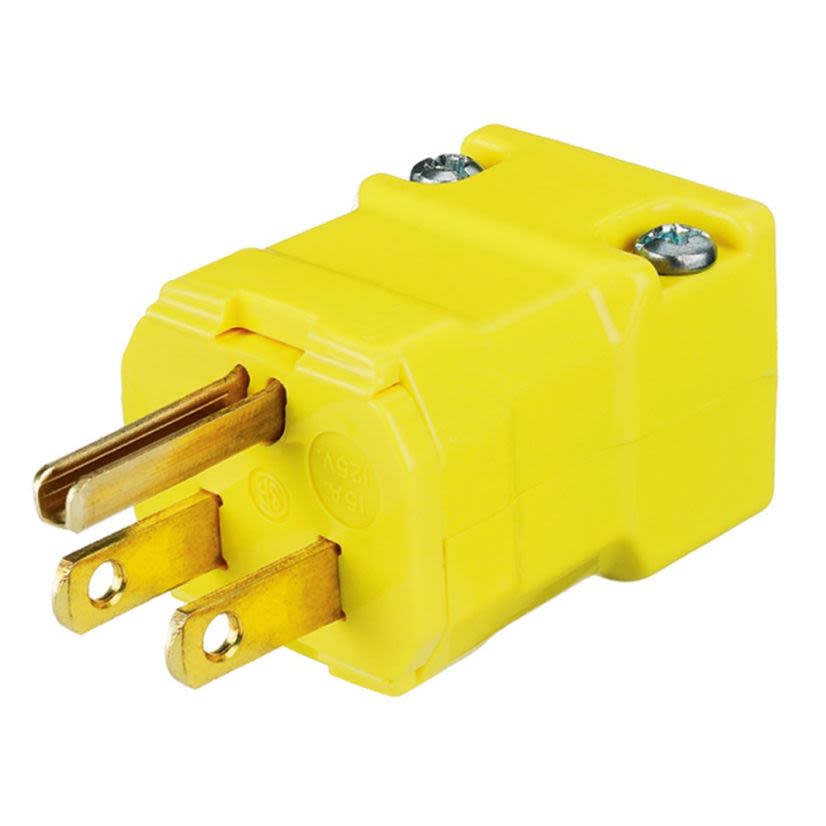

Hubbell Wiring Device-Kellems Valise HBL5965VY 1-Phase Grounding Portable Standard Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Hubbell Wiring Device - Kellems HBL5965VY
Hubbell Wiring Device-Kellems Valise HBL5965VY 1-Phase Grounding Portable Standard Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, YellowOut of Stockmore info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL5965VY
Werner Part #39200
UPC783585013091
Out of Stockmore info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL5965VY
Werner Part #39200
UPC783585013091
Product Description
Wiring Device-Kellems Valise® Straight Blade Plug, 1-Phase Grounding Portable Standard, 125 VAC, 15 A, 2 hp, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Yellow, 1.88 in L x 1.5 in W x 1.13 in H Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorYellow
Country of OriginUnited States
Dimensions1.88 x 1.88 x 2.55 in
Enclosure TypeIP20
GradeCommercial/Industrial
Horsepower2 hp
ManufacturerHubbell
MaterialPolycarbonate
NEMA Rating5-15P
Number of Poles2
Number of Wires3
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Grounding Portable Standard Cord Mount
Type / Style1-Phase Grounding Portable Standard
Voltage Rating125 VAC
Documents
Features
Withstands 2000 VAC dielectric voltageCertified for current interrupting at full rated currentMaximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature riseTerminals identified in accordance with UL 498 (brass, white, green)18 to 12 AWG stranded copper conductor terminal accommodationUL 94-V2 flammability rating0.06 and 0.04 in brass contact bladesSteel (copper or nickel finish) terminal screw, steel (green finish) ground screwHinged one piece body design for easy assemblyPowerful, off setting cord grips clamp on individual conductorsAssembly screws are captive and will not fall OUT while wiringNylon housing, noryl (polyphenylene oxide) cord clamp material
Specifications
Standards/Approvals: UL 498 File No. E1706 Listed|UL 94 V-2 Flammability Rating|CSA C22.2 File No. 42, 280|NEMA WD1/WD5
