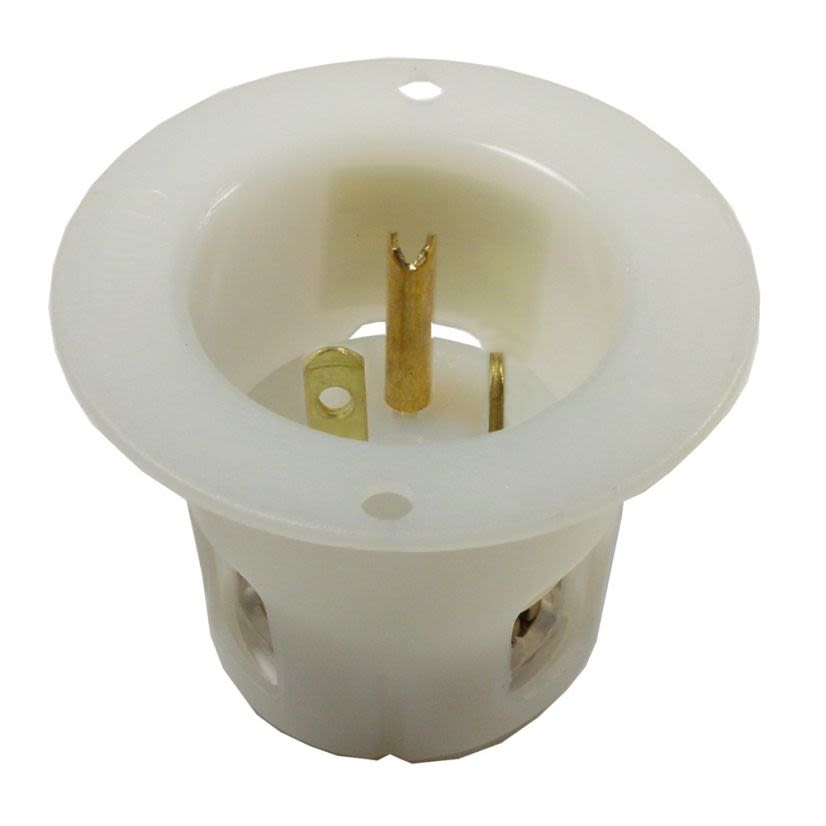

Hubbell Wiring Device - Kellems HBL5378C
Hubbell Wiring Device-Kellems Insulgrip HBL5378C 1-Phase Extra Heavy Duty Male Grounding Screw Mount Straight Blade Flanged Inlet, 125 V AC, 20 A, 2 Poles, 3 Wires, White
Hubbell Wiring Device - Kellems HBL5378C
Hubbell Wiring Device-Kellems Insulgrip HBL5378C 1-Phase Extra Heavy Duty Male Grounding Screw Mount Straight Blade Flanged Inlet, 125 V AC, 20 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL5378C
Werner Part #609282
UPC783585174402
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL5378C
Werner Part #609282
UPC783585174402
Product Description
Hubbell Wiring Device-Kellems Insulgrip, HBL5378C, Straight Blade Flanged Inlet, 1-Phase Extra Heavy Duty Male Grounding Screw Mount, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20P NEMA Rating, Industrial Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Nylon, White, 1.71 x 1.69 x 1.71 in Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorWhite
Country of OriginUS
Dimensions1.71 x 1.69 x 1.71 in
GradeIndustrial
Horsepower1 hp
ManufacturerHubbell
MaterialNylon
NEMA Rating5-20P
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypeBack and Side Wire/Screw
Type1-Phase Extra Heavy Duty Male Grounding Screw Mount
Type / StyleExtra Heavy Duty Male Grounding
Voltage Rating125 V AC
Documents
Applications
Extra Heavy Duty Industrial Applications
Features
- Backwired terminations for ease of installation
- Impact resistant thermoplastic construction
Specifications
Standards/Approvals: UL 498, File No. E2186 Listed, UL 94-V-2 Flammability Rating, CSA C22.2, No. 42 Certified, NEMA WD6 Compliant
