Hubbell Wiring Device - Kellems HBL5969VY

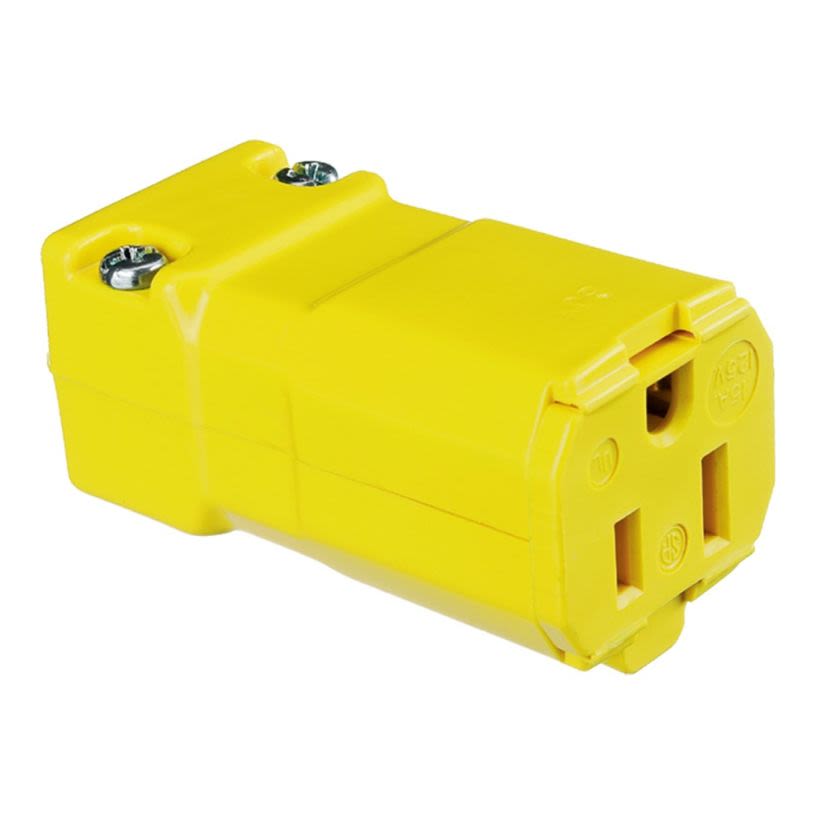

Hubbell Wiring Device-Kellems Valise HBL5969VY Female Grounding Insulated Cord Mount Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, Yellow
Hubbell Wiring Device - Kellems HBL5969VY
Hubbell Wiring Device-Kellems Valise HBL5969VY Female Grounding Insulated Cord Mount Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, YellowIn Stock: 7more info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL5969VY
Werner Part #39202
UPC783585013107
In Stock: 7more info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL5969VY
Werner Part #39202
UPC783585013107
Product Description
Hubbell Wiring Device-Kellems Valise, HBL5969VY, Straight Blade Connector, Female Grounding Insulated Cord Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 2.68 x 1.32 x 2.68 in Dimensions
Attributes
Documents
Warranty
Features
Specifications
Attributes
ColorYellow
Country of OriginCN
Dimensions2.68 x 1.32 x 2.68 in
Enclosure TypeIP20
GradeCommercial/Industrial
Horsepower1/2 hp
ManufacturerHubbell
MaterialNylon
NEMA Rating5-15R
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
TypeFemale Grounding Insulated Cord Mount
Type / StyleFemale Grounding Insulated
Voltage Rating125 V AC
Documents
Warranty
Limited
Features
- Assembly screws are captive and will not fall out while wiring
- Hinged one piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
Specifications
Standards/Approvals: UL 498, File No. E1706 Listed, UL 94-HB Flammability Rating|CSA C22.2 No. 42, 280 | NEMA WD1/WD5
