Hubbell Wiring Device - Kellems HBL15W33

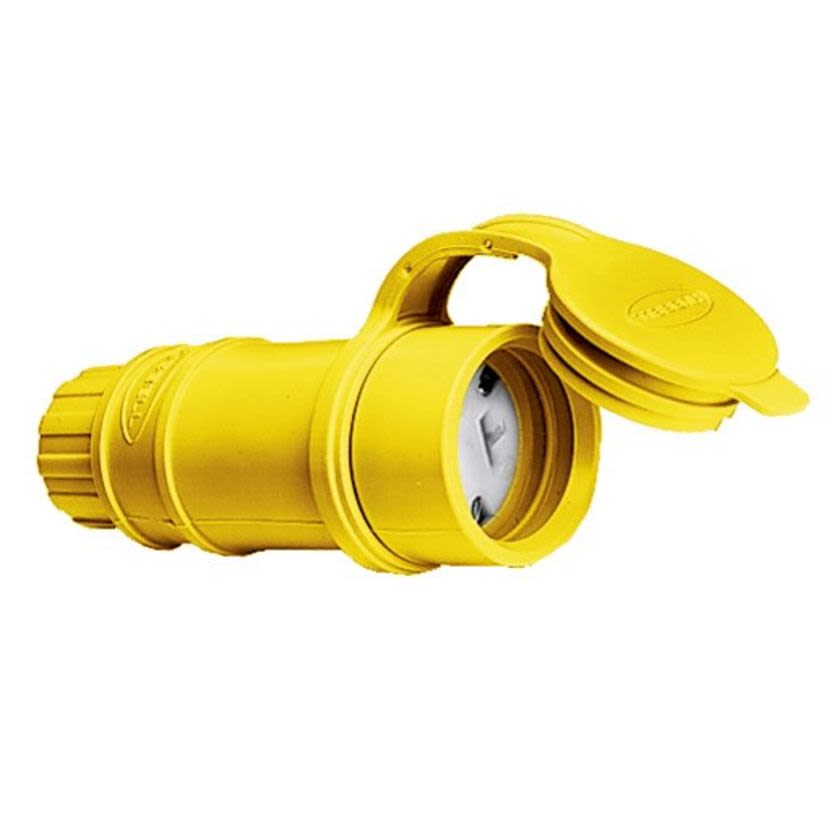

Hubbell Wiring Device-Kellems Elastogrip HBL15W33 Female Grounding Insulated Watertight Cord Mount Straight Blade Connector, 125 V AC, 20 A, 2 Poles, 3 Wires, Yellow
Hubbell Wiring Device - Kellems HBL15W33
Hubbell Wiring Device-Kellems Elastogrip HBL15W33 Female Grounding Insulated Watertight Cord Mount Straight Blade Connector, 125 V AC, 20 A, 2 Poles, 3 Wires, YellowOut of Stockmore info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL15W33
Werner Part #38822
UPC783585013343
Out of Stockmore info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL15W33
Werner Part #38822
UPC783585013343
Product Description
Hubbell Wiring Device-Kellems Elastogrip, HBL15W33, Straight Blade Connector, Female Grounding Insulated Watertight Cord Mount, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.3 to 0.655 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Yellow, 3 x 1.61 x 3 in Dimensions
Attributes
Documents
Warranty
Features
Specifications
Attributes
ColorYellow
Country of OriginUS
Dimensions3 x 1.61 x 3 in
Enclosure TypeIP20
GradeCommercial/Industrial
Horsepower1 hp
ManufacturerHubbell
MaterialComposite
NEMA Rating5-20R
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
TypeFemale Grounding Insulated Watertight Cord Mount
Type / StyleFemale Grounding Insulated Watertight
Voltage Rating125 V AC
Documents
Warranty
Limited
Features
- Thermoplastic elastomer housing
- Nylon compression nut keeps water and dust from getting into the body around the cord
- Integral weatherproofing shroud seals connection between plug and connector
Specifications
Standards/Approvals: UL 498, File No. E1706 Listed, UL 94-HB Flammability Rating|CSA C22.2 No. 42, 280 | NEMA WD1/WD5
