Hubbell Wiring Device - Kellems 520SC

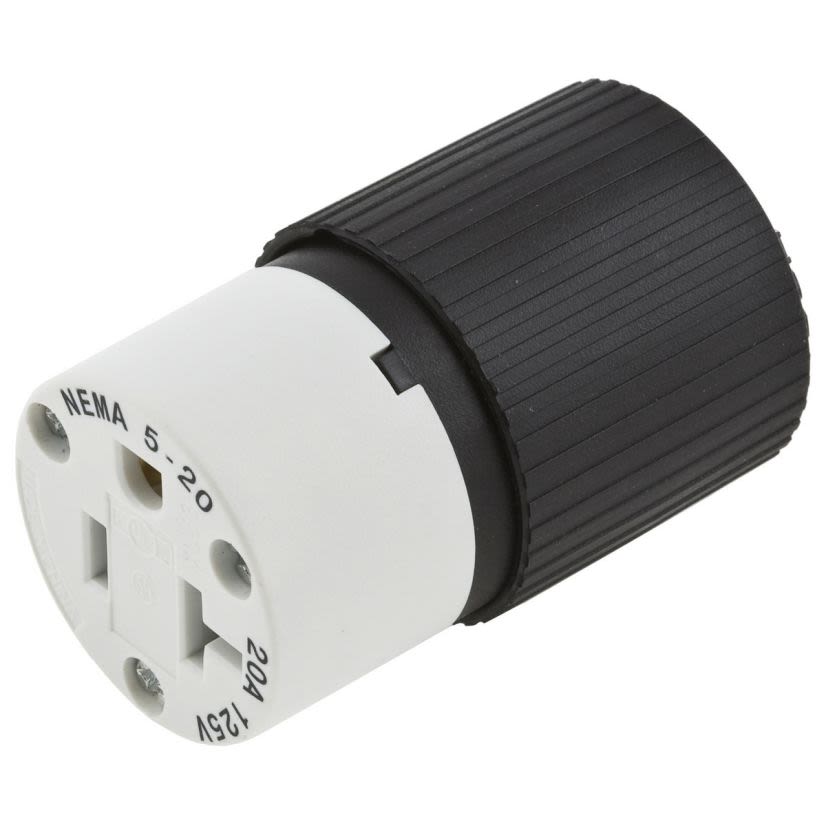

Hubbell Wiring Device-Kellems 520SC Straight Body Straight Blade Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black/White
Hubbell Wiring Device - Kellems 520SC
Hubbell Wiring Device-Kellems 520SC Straight Body Straight Blade Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black/WhiteIn Stock: 37more info
|
BrandHubbell Wiring Device - Kellems
MFG #520SC
Werner Part #1425520
UPC783585331591
In Stock: 37more info
|
BrandHubbell Wiring Device - Kellems
MFG #520SC
Werner Part #1425520
UPC783585331591
Product Description
Wiring Device-Kellems Straight Blade Connector, Straight Body, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R, Commercial/Industrial Grade, 0.3 to 0.655 in Diameter Cord, -40 to 75 deg C, Threaded Terminal, Composite, Black/White
Attributes
Documents
Features
Specifications
Attributes
ColorYellow
Country of OriginChina
Dimensions1.55 in Dia x 2.56 in H
GradeCommercial
GTIN00783585331591
ManufacturerHubbell
MaterialPVC/Steel
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
SeriesStraight Body
Temperature Rating-40 to 60 deg C
Terminal TypeScrew
TypeCable Mount Armored Grounding
Type / StyleStraight Body
Voltage Rating125 VAC
Documents
Features
- Nylon construction, visible NEMA ratings, insulated body, cord mounted
- Indoor dry unless protected by additional means environmental conditions
- 75 deg C minimum continuous, -40 deg C without impact, -25 deg C with impact maximum continuous temperature
- 14 to 12 AWG conductor range
Specifications
Standards/Approvals: CSA Certified|Federal Specification|UL Listed
