Hubbell Wiring Device - Kellems 515SC

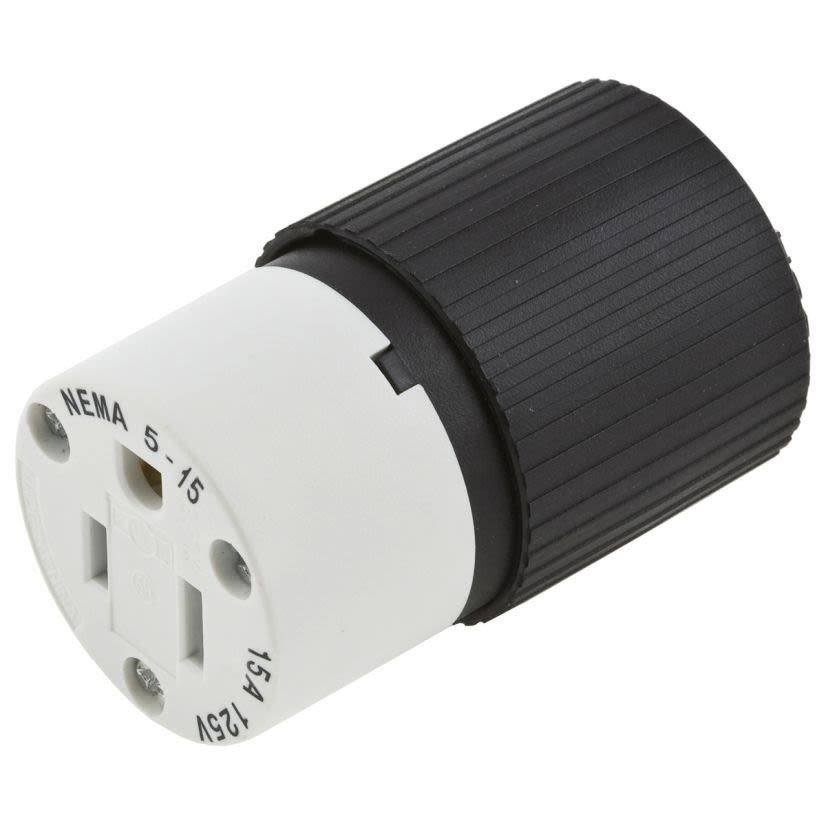

Hubbell Wiring Device-Kellems 515SC Straight Body Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Hubbell Wiring Device - Kellems 515SC
Hubbell Wiring Device-Kellems 515SC Straight Body Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/WhiteIn Stock: 57more info
|
BrandHubbell Wiring Device - Kellems
MFG #515SC
Werner Part #1427749
UPC783585331577
In Stock: 57more info
|
BrandHubbell Wiring Device - Kellems
MFG #515SC
Werner Part #1427749
UPC783585331577
Product Description
Wiring Device-Kellems Straight Blade Connector, Straight Body, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R, Commercial/Industrial Grade, 0.3 to 0.655 in Diameter Cord, -40 to 75 deg C, Threaded Terminal, Composite, Black/White
Attributes
Documents
Features
Specifications
Attributes
ColorYellow
Country of OriginChina
Dimensions1.85 in Dia x 4.42 in L
Enclosure TypeNEMA 4/4X/6/6P/12
GradeCommercial/Industrial
GTIN00783585331577
Horsepower1/2 hp
ManufacturerHubbell
MaterialElastomer/Composite
NEMA Rating5-15R
Number of Poles2
Number of Wires3
SeriesStraight Body
Temperature Rating-40 to 60 deg C
Terminal TypeScrew
TypeFemale Grounding Insulated Watertight Cord Mount
Type / StyleStraight Body
Voltage Rating125 VAC
Documents
Features
- Nylon construction, visible NEMA ratings, insulated body, cord mounted
- Indoor dry unless protected by additional means environmental conditions
- 75 deg C minimum continuous, -40 deg C without impact, -25 deg C with impact maximum continuous temperature
- 14 to 12 AWG conductor range
Specifications
Standards/Approvals: CSA Certified|Federal Specification|UL Listed
