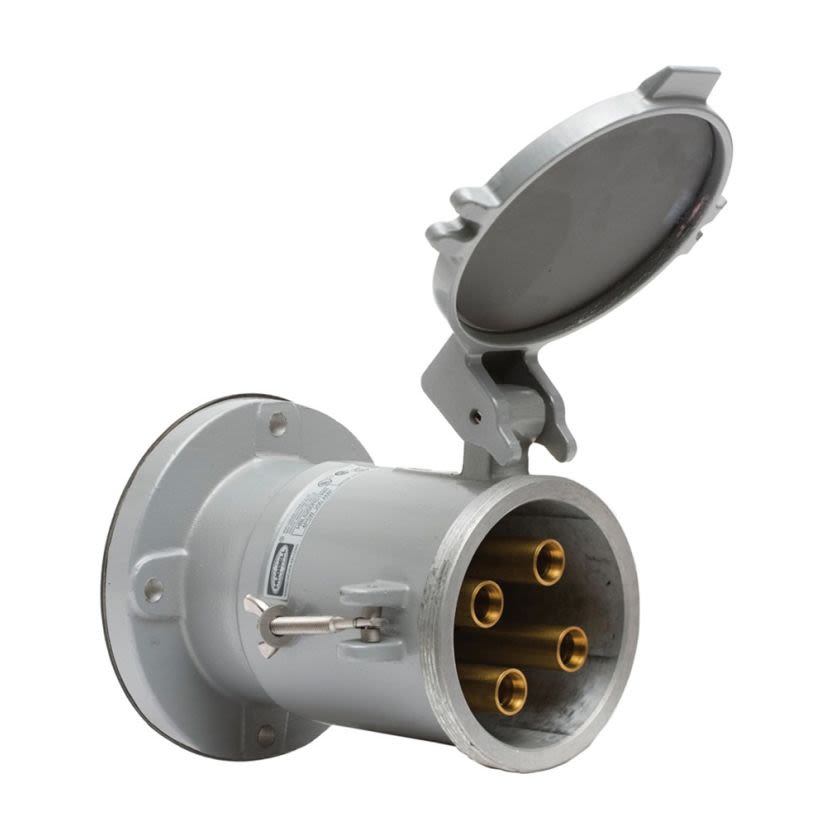

Hubbell Wiring Device - Kellems HBL5200RS1WR
Hubbell Wiring Device-Kellems HBL5200RS1WR 3-Phase Flanged Grounding Non-NEMA Reversed Style 1 Single Standard Watertight Screw Mount Pin and Sleeve Receptacle, 600 V AC, 200 A, 4 Poles, 5 Wires, Black/Gray
Hubbell Wiring Device - Kellems HBL5200RS1WR
Hubbell Wiring Device-Kellems HBL5200RS1WR 3-Phase Flanged Grounding Non-NEMA Reversed Style 1 Single Standard Watertight Screw Mount Pin and Sleeve Receptacle, 600 V AC, 200 A, 4 Poles, 5 Wires, Black/GrayNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems, HBL5200RS1WR, Pin and Sleeve Receptacle, 3-Phase Flanged Grounding Non-NEMA Reversed Style 1 Single Standard Watertight Screw Mount, 600 V AC, 200 A, 4 Pole, 5 Wires, Industrial Grade, IP66 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Black/Gray, 7.39 in L x 5.63 in W Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack/Gray
Country of OriginUS
Dimensions7.39 in L x 5.63 in W
GradeIndustrial
ManufacturerHubbell
MaterialThermoplastic
NEMA RatingNON-NEMA
Number of Poles4
Number of Wires5
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypePressure Screw
Type3-Phase Flanged Grounding Non-NEMA Reversed Style 1 Single Standard Watertight Screw Mount
Type / Style3-Phase Flanged Grounding Non-NEMA Reversed Style 1 Single Standard Watertight
Voltage Rating600 V AC
Documents
Applications
High Ampacity Connections Applications
Warranty
Limited
Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA C22.2 File No. 182.1|UL498|UL 1686
