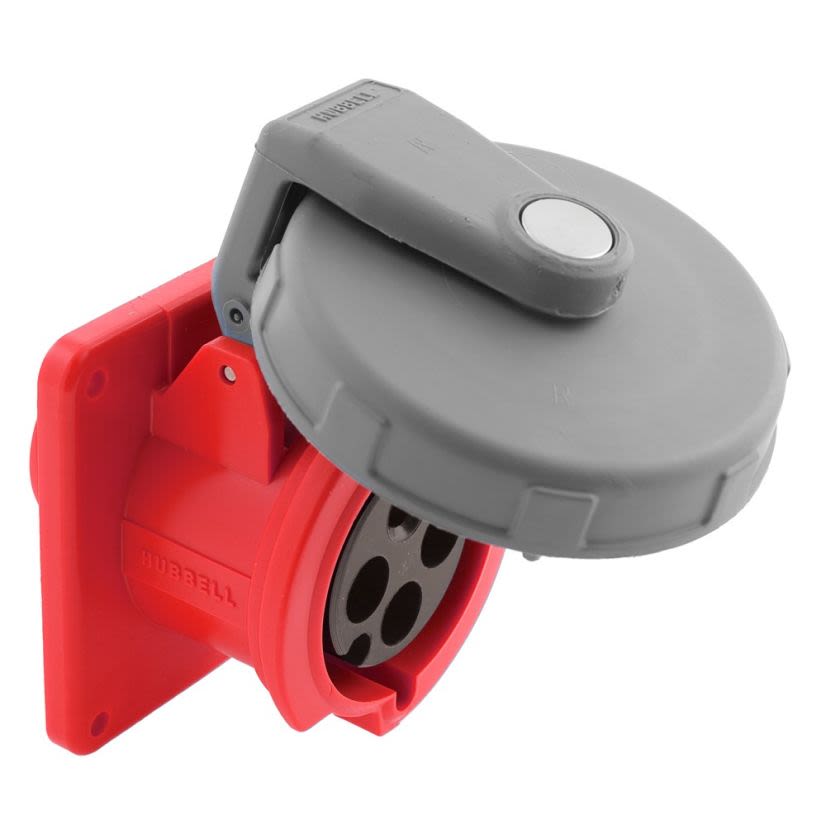

Hubbell Wiring Device - Kellems HBL460R7W
Hubbell Wiring Device-Kellems HBL460R7W 3-Phase Female Grounding Watertight Screw Mount Pin and Sleeve Receptacle, 480 V AC, 60 A, 3 Poles, 4 Wires, Red
Hubbell Wiring Device - Kellems HBL460R7W
Hubbell Wiring Device-Kellems HBL460R7W 3-Phase Female Grounding Watertight Screw Mount Pin and Sleeve Receptacle, 480 V AC, 60 A, 3 Poles, 4 Wires, RedIn Stock: 5more info
|
In Stock: 5more info
|
Product Description
Hubbell Wiring Device-Kellems, HBL460R7W, Pin and Sleeve Receptacle, 3-Phase Female Grounding Watertight Screw Mount, 480 V AC, 60 A, 10 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 4.5 in W x 4.07 in D x 5.1 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorRed
Country of OriginUS
Dimensions4.5 in W x 4.07 in D x 5.1 in H
Enclosure TypeIP67
GradeIndustrial
Horsepower10 hp
ManufacturerHubbell
MaterialThermoplastic
NEMA RatingNON-NEMA
Number of Poles3
Number of Wires4
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypePressure Screw
Type3-Phase Female Grounding Watertight Screw Mount
Type / StyleFemale Grounding Watertight
Voltage Rating480 V AC
Documents
Applications
High Ampacity Watertight Connection Applications
Features
- Super tough insulated non-metallic housing
- Self-closing gasketed cover
- Sequential contact engagement to prevent a momentary over-voltage
- Color coded housings for easy identification
Specifications
Standards/Approvals: UL 498|UL94 Flammability Rating|IEC 309-1/309-2|CSA C22.2 No. 0.17
