Hubbell Wiring Device - Kellems HBL460PS2W

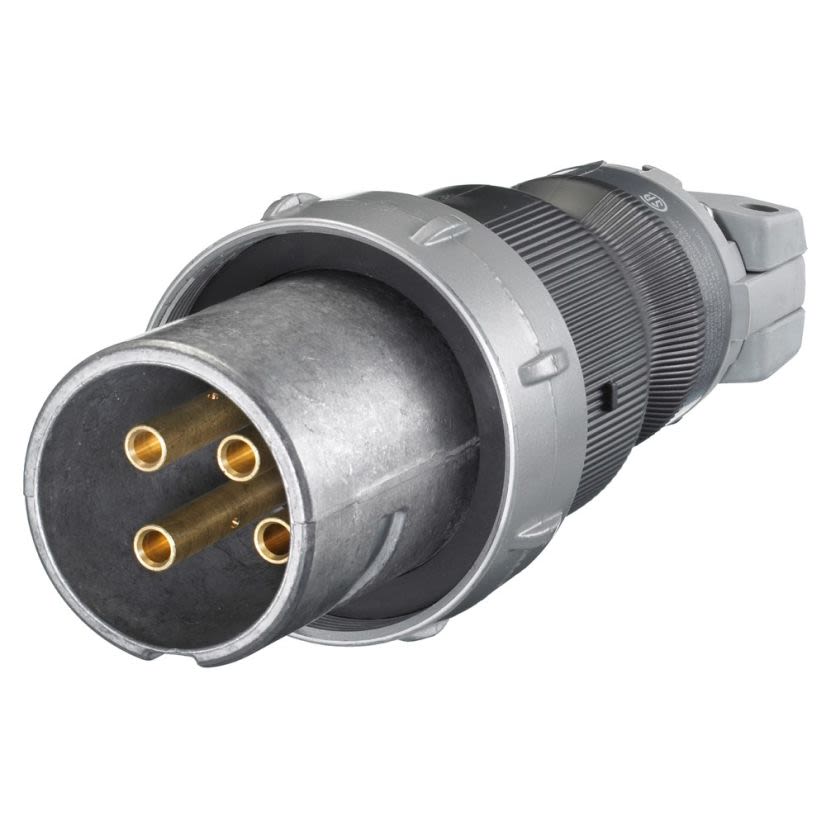

Hubbell Wiring Device-Kellems Insulgrip HBL460PS2W Type 2 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount Pin and Sleeve Plug, 600 V AC/250 V DC, 60 A, 3 Poles, 4 Wires, Black/Gray
Hubbell Wiring Device - Kellems HBL460PS2W
Hubbell Wiring Device-Kellems Insulgrip HBL460PS2W Type 2 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount Pin and Sleeve Plug, 600 V AC/250 V DC, 60 A, 3 Poles, 4 Wires, Black/GrayOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Hubbell Wiring Device-Kellems Insulgrip, HBL460PS2W, Pin and Sleeve Plug, Type 2 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount, 600 V AC/250 V DC, 60 A, 50 to 400 Hz Frequency, 3 Pole, 4 Wires, 3/4/4X NEMA Rating, Industrial Grade, NEMA 3/4/4X Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 3.7 in Dia x 9.6 in L Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack/Gray
Country of OriginUS
Dimensions3.7 in Dia x 9.6 in L
Frequency Rating50 to 400 Hz
GradeIndustrial
ManufacturerHubbell
MaterialComposite
NEMA Rating3/4/4X
Number of Poles3
Number of Wires4
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypePressure Screw
TypeType 2 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount
Type / StyleType 2 Grounding Male Non-NEMA Portable Standard Watertight
Voltage Rating600 V AC/250 V DC
Documents
Applications
High Ampacity Connections Applications
Warranty
Limited
Features
- All-Brass sleeve contacts provide reliable electrical contact
- Locking ring provides watertight, dust-tight seal
- Catalog number and rating visible while in use
Specifications
Standards/Approvals: UL 498|UL 1686|UL 1682|UL 50|UL 1010|CSA C22.2 File No. 182.1/94/159
