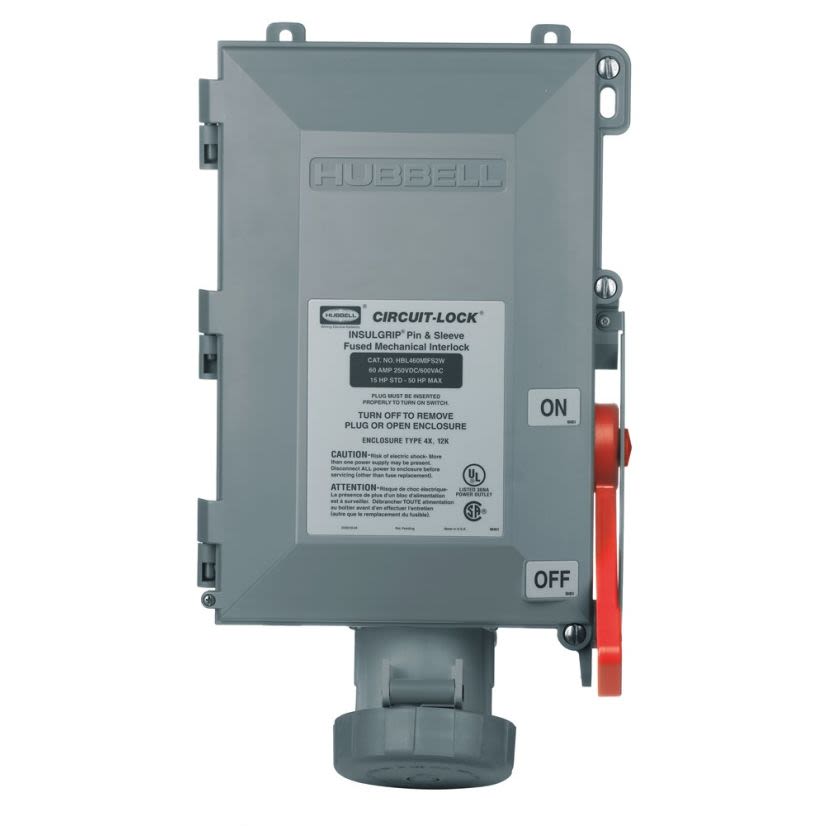

Hubbell Wiring Device - Kellems HBL460MIF7W
Hubbell Wiring Device-Kellems HBL Circuit-Lock HBL460MIF7W 3-Phase Female Grounding Industrial Grade Fused Standard Pressure Screw Terminal Watertight Pin and Sleeve Mechanical Interlock, 480 V AC, 60 A, 3 Poles, 4 Wires
Hubbell Wiring Device - Kellems HBL460MIF7W
Hubbell Wiring Device-Kellems HBL Circuit-Lock HBL460MIF7W 3-Phase Female Grounding Industrial Grade Fused Standard Pressure Screw Terminal Watertight Pin and Sleeve Mechanical Interlock, 480 V AC, 60 A, 3 Poles, 4 WiresNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems HBL Circuit-Lock, HBL460MIF7W, Pin and Sleeve Mechanical Interlock, 3-Phase Female Grounding Industrial Grade Fused Standard Pressure Screw Terminal Watertight, 480 V AC, 60 A, 28800 W Power, 3 Pole, 4 Wires, 1-1/4 in NPT Hub, NEMA 4X/12K/IP67 Enclosure, Threaded Mounting, Thermoplastic, Red, 10.18 in L x 8.43 in W x 15.36 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorRed
Country of OriginIT
Dimensions10.18 in L x 8.43 in W x 15.36 in H
Electrical Ratings15000 W
Enclosure TypeNEMA 4X/12K/IP67
ManufacturerHubbell
MaterialThermoplastic
Mounting TypeThreaded
Number of Poles3
Number of Wires4
Package TypeEACH
Type3-Phase Female Grounding Industrial Grade Fused Standard Pressure Screw Terminal Watertight
Type / StyleFemale Grounding Industrial Grade Fused Standard
Voltage Rating480 V AC
Documents
Applications
High Ampacity Connections Applications
Warranty
Limited
Features
- Plug-Check mechanism to detect the presence of plug
- Replaceable spring-loaded receptacle liftcover with gasket
- Removable door for ease of wiring and installation
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CSA Certified|IEC 309-1/309-2|UL 498
