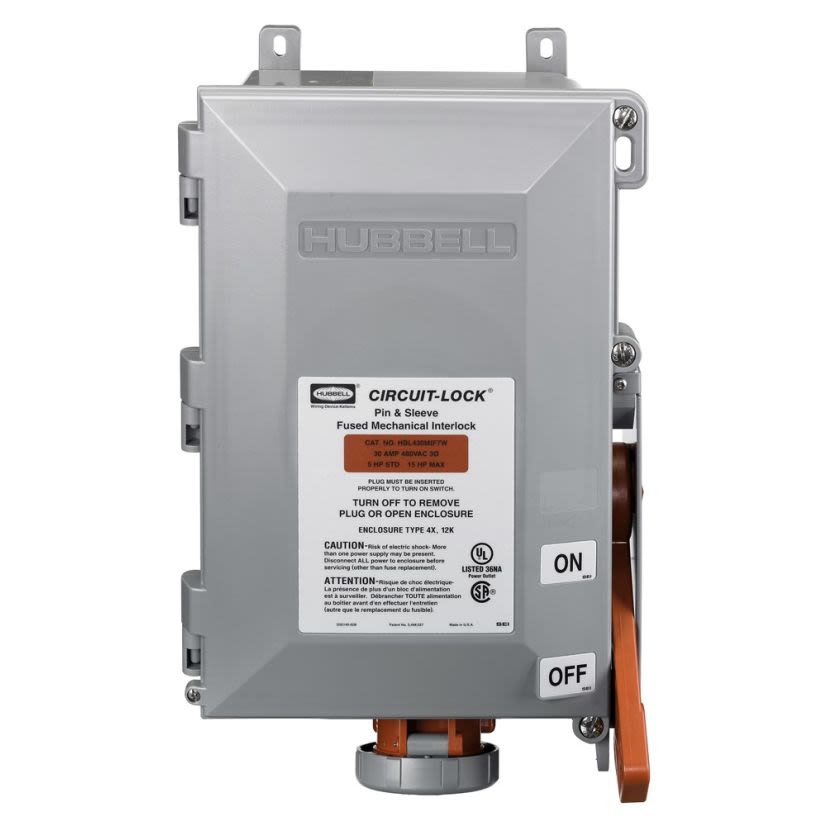

Hubbell Wiring Device - Kellems HBL430MIF7W
Hubbell Wiring Device-Kellems HBL430MIF7W 3-Phase Female Fusible Grounding Non-NEMA Standard Watertight Pressure Screw Terminal Pin and Sleeve Mechanical Interlock, 480 V AC, 30 A, 3 Poles, 4 Wires
Hubbell Wiring Device - Kellems HBL430MIF7W
Hubbell Wiring Device-Kellems HBL430MIF7W 3-Phase Female Fusible Grounding Non-NEMA Standard Watertight Pressure Screw Terminal Pin and Sleeve Mechanical Interlock, 480 V AC, 30 A, 3 Poles, 4 WiresNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems, HBL430MIF7W, Pin and Sleeve Mechanical Interlock, 3-Phase Female Fusible Grounding Non-NEMA Standard Watertight Pressure Screw Terminal, 480 V AC, 30 A, 14400 W Power, 3 Pole, 4 Wires, 1 in NPT Hub, NEMA 4X/12K/IP67 Enclosure, Threaded Mounting, Thermoplastic, Red, 10.18 in L x 8.43 in W x 15.36 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorRed
Country of OriginPL
Dimensions10.18 in L x 8.43 in W x 15.36 in H
Electrical Ratings10 hp
Enclosure TypeNEMA 4X/12K/IP67
ManufacturerHubbell
MaterialThermoplastic
Mounting TypeThreaded
Number of Poles3
Number of Wires4
Package TypeEACH
Type3-Phase Female Fusible Grounding Non-NEMA Standard Watertight Pressure Screw Terminal
Type / Style3-Phase Female Fusible Grounding Non-NEMA Standard Watertight
Voltage Rating480 V AC
Documents
Applications
High Ampacity Connections and Industrial Applications
Warranty
Limited
Features
- Replaceable spring-loaded receptacle liftcover with gasket
- Removable door for ease of wiring and installation
- Plug-Check mechanism to detect the presence of plug
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CSA Certified|IEC 309-1/309-2|UL 498
