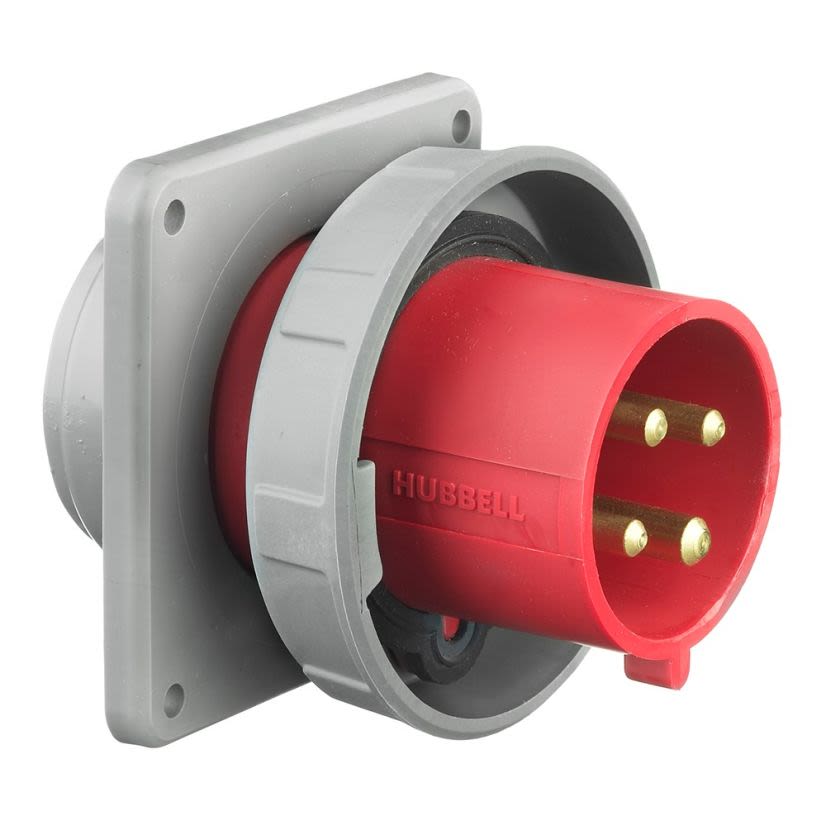

Hubbell Wiring Device - Kellems HBL430B7W
Hubbell Wiring Device-Kellems HBL430B7W 3-Phase Flanged Grounding Male Non-NEMA Single Standard Watertight Screw Mount Pin and Sleeve Inlet, 480 V AC, 30 A, 3 Poles, 4 Wires, Red
Hubbell Wiring Device - Kellems HBL430B7W
Hubbell Wiring Device-Kellems HBL430B7W 3-Phase Flanged Grounding Male Non-NEMA Single Standard Watertight Screw Mount Pin and Sleeve Inlet, 480 V AC, 30 A, 3 Poles, 4 Wires, RedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems, HBL430B7W, Pin and Sleeve Inlet, 3-Phase Flanged Grounding Male Non-NEMA Single Standard Watertight Screw Mount, 480 V AC, 30 A, 7.5 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 3-3/4 in W x 3-3/4 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorRed
Country of OriginUS
Dimensions3-3/4 in W x 3-3/4 in H
Enclosure TypeIP67
GradeIndustrial
Horsepower7.5 hp
ManufacturerHubbell
MaterialThermoplastic
NEMA RatingNON-NEMA
Number of Poles3
Number of Wires4
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypePressure Screw
Type3-Phase Flanged Grounding Male Non-NEMA Single Standard Watertight Screw Mount
Type / Style3-Phase Flanged Grounding Male Non-NEMA Single Standard Watertight
Voltage Rating480 V AC
Documents
Applications
High Ampacity Watertight Connection Applications
Features
- Thermoset polyester contact carrier
- Solid one-piece pins for reliable electrical contact
- Rugged one-piece housing
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA File No. LR280C|IEC 309-1/309-2|UL 498
