Hubbell Wiring Device - Kellems HBL4100B7W

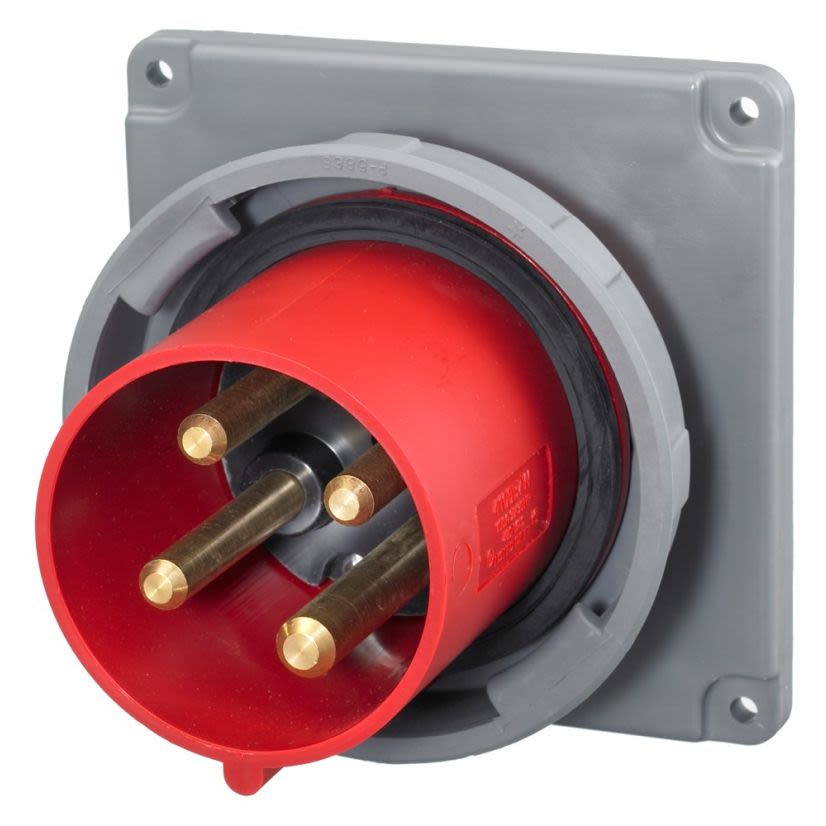

Hubbell Wiring Device-Kellems HBL4100B7W 3-Phase Flanged Male Single Standard Watertight Screw Mount Pin and Sleeve Inlet, 480 V AC, 100 A, 3 Poles, 4 Wires, Red
Hubbell Wiring Device - Kellems HBL4100B7W
Hubbell Wiring Device-Kellems HBL4100B7W 3-Phase Flanged Male Single Standard Watertight Screw Mount Pin and Sleeve Inlet, 480 V AC, 100 A, 3 Poles, 4 Wires, RedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems, HBL4100B7W, Pin and Sleeve Inlet, 3-Phase Flanged Male Single Standard Watertight Screw Mount, 480 V AC, 100 A, 30 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 5-1/2 in W x 5-1/2 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorRed
Country of OriginUS
Dimensions5-1/2 in W x 5-1/2 in H
Enclosure TypeIP67
GradeIndustrial
Horsepower30 hp
ManufacturerHubbell
MaterialThermoplastic
NEMA RatingNON-NEMA
Number of Poles3
Number of Wires4
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypePressure Screw
Type3-Phase Flanged Male Single Standard Watertight Screw Mount
Type / StyleFlanged Male Single Standard Watertight
Voltage Rating480 V AC
Documents
Applications
High Ampacity Watertight Connection Applications
Features
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA File No. LR280C|IEC 309-1/309-2|UL 498
