Hubbell Wiring Device - Kellems LR420

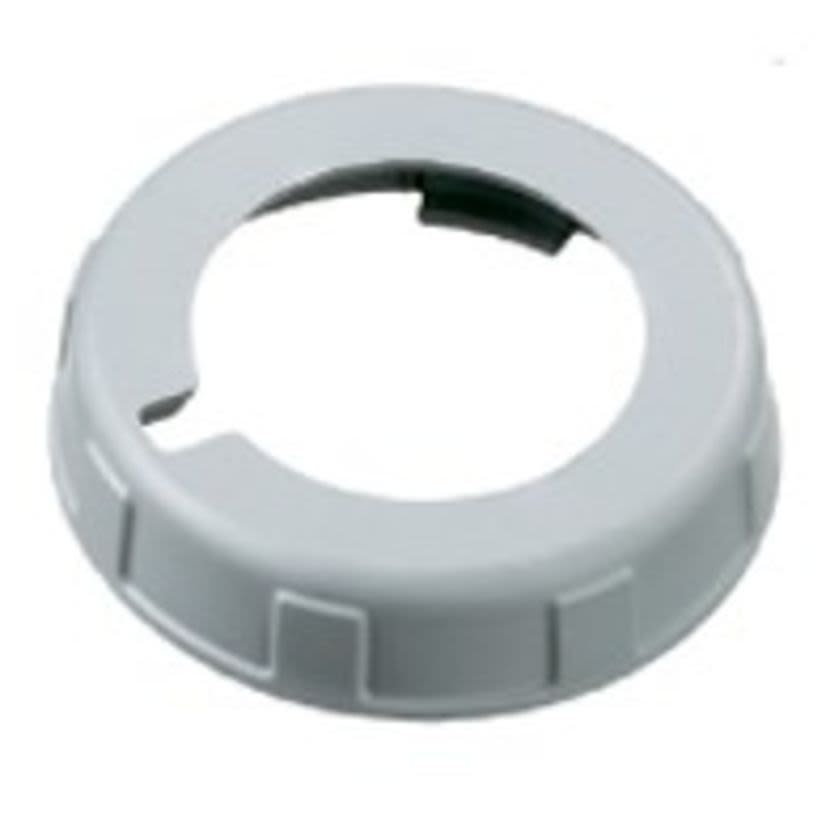

Hubbell Wiring Device-Kellems LR420 Replacement Locking Ring, For Use With 16 and 20 A, 4 Wire Plugs, Connectors and Inlets and IEC Devices, 600 VAC rms Max Working Voltage, Gray
Hubbell Wiring Device - Kellems LR420
Hubbell Wiring Device-Kellems LR420 Replacement Locking Ring, For Use With 16 and 20 A, 4 Wire Plugs, Connectors and Inlets and IEC Devices, 600 VAC rms Max Working Voltage, GrayNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Replacement Locking Ring, For Use With: 16 and 20 A, 4 Wire Plugs, Connectors and Inlets and IEC Devices, Specifications: 600 VAC rms Max Working Voltage, Gray
Attributes
Documents
Features
Attributes
ColorGray
Country of OriginPuerto Rico
ManufacturerHubbell
Suitable For Use With16 and 20 A, 4 Wire Plugs, Connectors and Inlets and IEC Devices
Type / StyleLocking Ring
Documents
Features
Neoprene gasketWithstand 3000 VAC dielectric voltageCertified for current interrupting at full rated currentSuitable for use on a circuit capable of delivering not more than 10,000 rms symmetrical amperes at the voltage rating of the receptacleIn accordance with UL 746C impact resistanceIP67 ingress protectionUL94-5VA and V-0 classification flammability-40 to 75 deg C continuous operating temperatureAll materials are UV stabilizedWhere an IEC configuration is required but water resistance is not necessary, low profile pin and sleeve can make the connection
