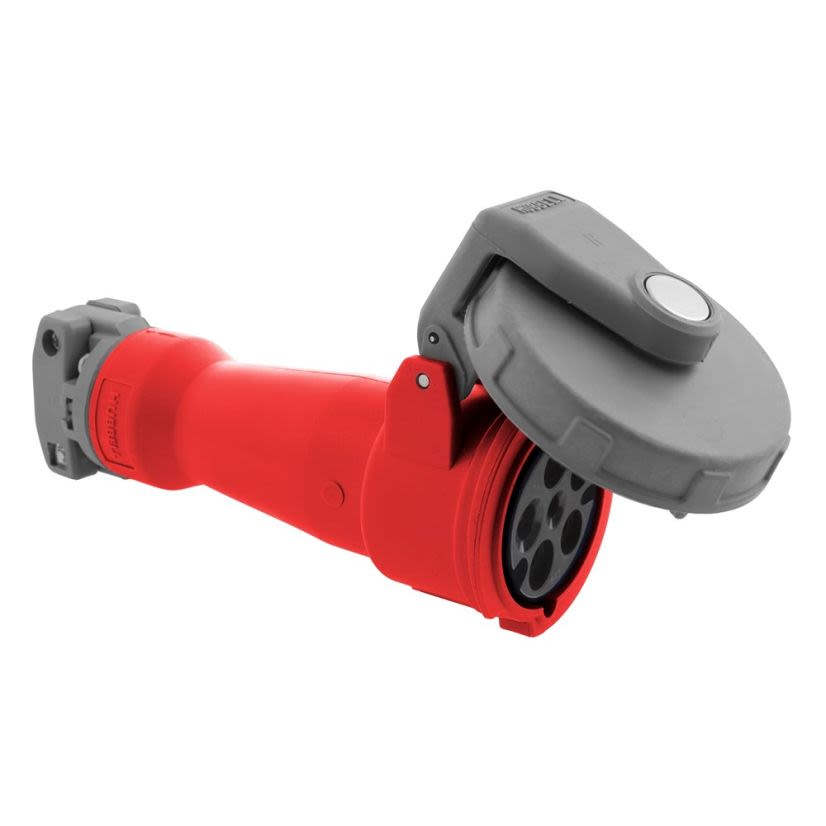

Hubbell Wiring Device - Kellems HBL530C7W
Hubbell Wiring Device-Kellems HBL530C7W 3-Phase 5-Wire Female Grounding Heavy Duty Insulated Non-NEMA Standard Watertight Cord Mount Pin and Sleeve Connector, 277/480Y V AC, 30 A, 4 Poles, 5 Wires, Red
Hubbell Wiring Device - Kellems HBL530C7W
Hubbell Wiring Device-Kellems HBL530C7W 3-Phase 5-Wire Female Grounding Heavy Duty Insulated Non-NEMA Standard Watertight Cord Mount Pin and Sleeve Connector, 277/480Y V AC, 30 A, 4 Poles, 5 Wires, RedNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL530C7W
Werner Part #3866321
UPC783585405445
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL530C7W
Werner Part #3866321
UPC783585405445
Product Description
Hubbell Wiring Device-Kellems, HBL530C7W, Pin and Sleeve Connector, 3-Phase 5-Wire Female Grounding Heavy Duty Insulated Non-NEMA Standard Watertight Cord Mount, 277/480Y V AC, 30 A, 7-1/2 hp, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 9.68 in L x 4.7 in W Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorRed
Country of OriginUS
Dimensions9.68 in L x 4.7 in W
GradeIndustrial
Horsepower7-1/2 hp
ManufacturerHubbell
MaterialComposite
Number of Poles4
Number of Wires5
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypePressure Screw
Type3-Phase 5-Wire Female Grounding Heavy Duty Insulated Non-NEMA Standard Watertight Cord Mount
Type / Style3-Phase 5-Wire Female Grounding Heavy Duty Insulated Non-NEMA Standard Watertight
Voltage Rating277/480Y V AC
Documents
Applications
High Ampacity Connections Applications
Features
- Sequential contact engagement to prevent a momentary over voltage on components
- Nickel plated brass cover screw/rivet
- Polycarbonate rotating sealing disc and brass ground/phase sleeve
- Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
- 300 series stainless steel terminal screws, 300 series stainless steel terminal screws assembly screws, stainless steel (17-1 type) arm spring
- Identification and ratings are a part of the external label and molded into the receptacle mount product identification
- Color coded housings by voltage for easy identification
- High impact thermoset contact carrier and retainer
- Corrosion-resistant self-closing gasketed cover
- Supertough insulated non-metallic housing
- 0.6 to 1.45 in cord clamp range
- Watertight neoprene glad seal to prevent water ingress from entering at cable entrance
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 498 File No. E146033|CSA File No. LR280C|IEC 309-1/309-2/60309-1/60309-2
