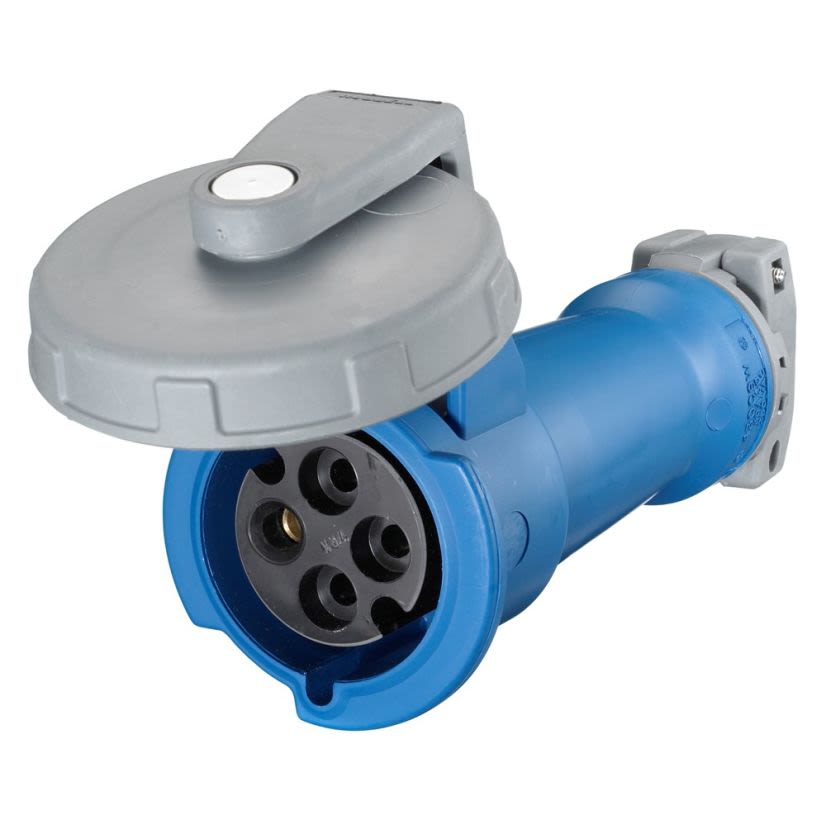

Self-closing gasketed coverSuper tough insulated non-metallic housingWatertight neoprene glad seal to prevent water ingress from entering at cable entranceSequential contact engagement to prevent a momentary over-voltageMulti-contact spring provides and maintains high unit pressure on mating pins to minimize temperature riseWithstands 3000 VAC dielectric voltageReinforced thermoplastic polyester covers and cord clampsSolid neoprene gaskets and glands12 to 8 AWG copper wire terminal accommodation, 3/8 to 1-1/4 cord clamp rangeRound portable service cords of diameters commensurate with the device rating as defined in UL standard 62, CSA C22.2 No. 49 and the harmonized European standards cord accommodationTerminals identified in accordance with North american and IEC conventions terminal identification, identification and ratings are a permanent part of the device housing product identificationWatertight per IEC 60309-1 moisture resistanceHB or better per UL 94 or CSA 22.2 No. 0.17 flammabilityEvery Hubbell® non-metallic pin and sleeve product is designed to meet the international standard IEC 60309-1 and IEC 60309-2, this device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service device description

Standards/Approvals: UL 498|IEC 309-1/309-2|CSA C22.2 No. 182.2
