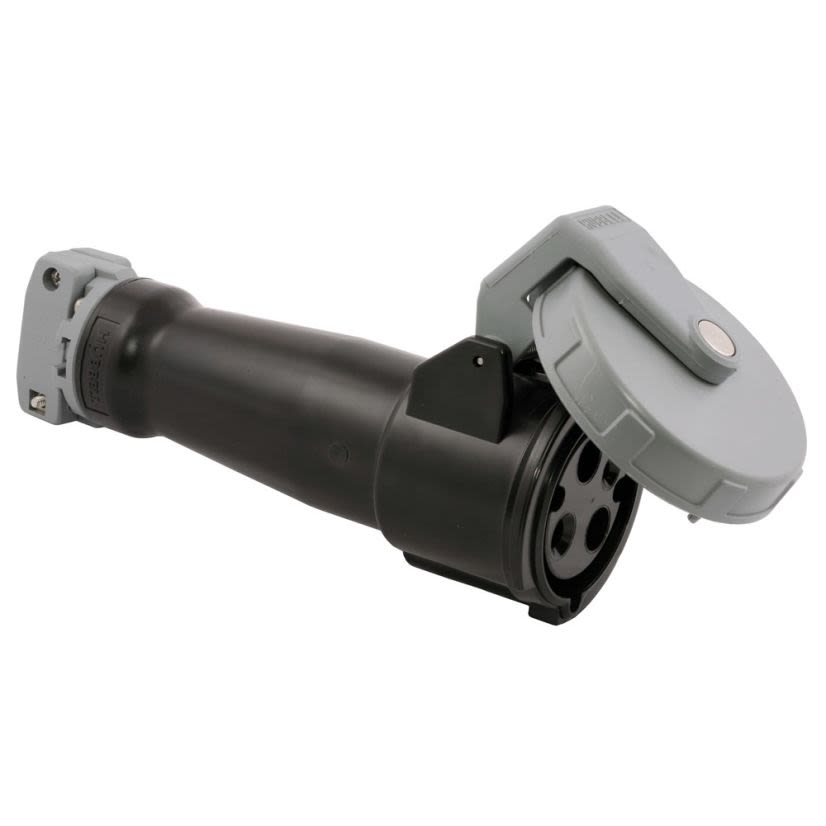

Hubbell Wiring Device - Kellems HBL4100C5W
Hubbell Wiring Device-Kellems HBL4100C5W 3-Phase Female Heavy Duty Standard Watertight Cord Mount Pin and Sleeve Connector, 600 V AC, 100 A, 3 Poles, 4 Wires, Black
Hubbell Wiring Device - Kellems HBL4100C5W
Hubbell Wiring Device-Kellems HBL4100C5W 3-Phase Female Heavy Duty Standard Watertight Cord Mount Pin and Sleeve Connector, 600 V AC, 100 A, 3 Poles, 4 Wires, BlackNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems, HBL4100C5W, Pin and Sleeve Connector, 3-Phase Female Heavy Duty Standard Watertight Cord Mount, 600 V AC, 100 A, 30 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black, 13.57 in L x 5.71 in W Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack
Country of OriginUS
Dimensions13.57 in L x 5.71 in W
GradeIndustrial
Horsepower30 hp
ManufacturerHubbell
MaterialComposite
NEMA RatingNON-NEMA
Number of Poles3
Number of Wires4
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypePressure Screw
Type3-Phase Female Heavy Duty Standard Watertight Cord Mount
Type / Style3-Phase Female Heavy Duty Standard Watertight
Voltage Rating600 V AC
Documents
Applications
High Ampacity Connection Applications
Warranty
Limited
Features
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 498 File No. E146033|CSA File No. LR280C|IEC 309-1/309-2/60309-1/60309-2
