Hubbell Wiring Device - Kellems HBL4770C

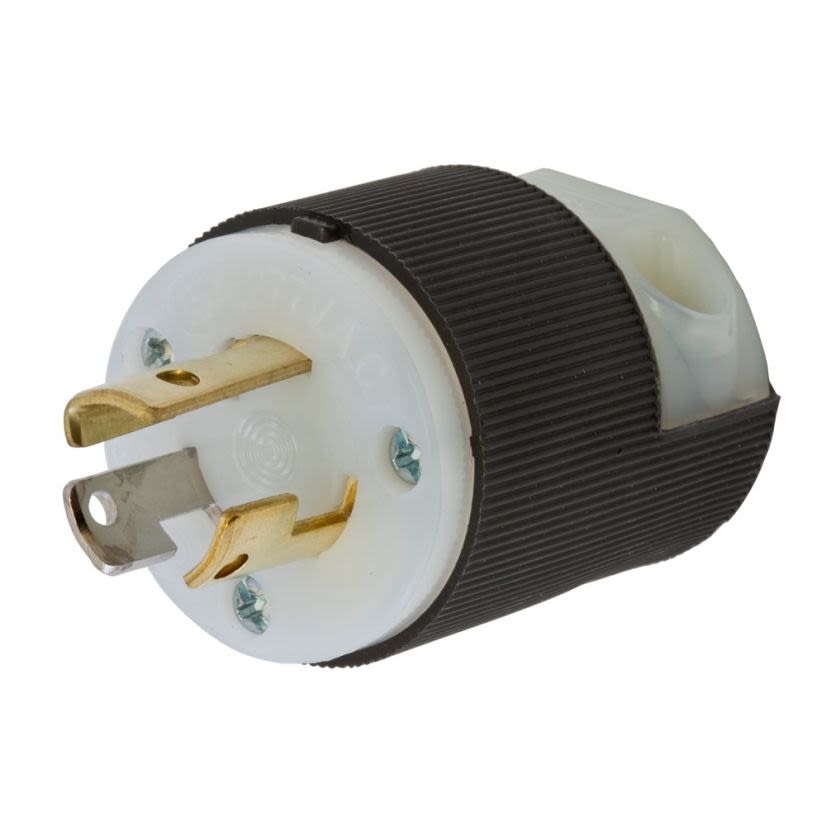

Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL4770C HBL 1-Phase Grounding Cord Mount Locking Plug, 277 V AC, 15 A, 2 Poles, 3 Wires, Black/White
Hubbell Wiring Device - Kellems HBL4770C
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL4770C HBL 1-Phase Grounding Cord Mount Locking Plug, 277 V AC, 15 A, 2 Poles, 3 Wires, Black/WhiteInventory Not Available
Inventory Not Available
Product Description
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip, HBL4770C, Locking Plug, 1-Phase Grounding Cord Mount, Series: HBL, 277 V AC, 15 A, 2 hp, 2 Pole, 3 Wires, L7-15P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 1.53 x 1.53 x 1.97 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack/White
Country of OriginUS
Dimensions1.53 x 1.53 x 1.97 in
Enclosure TypeIP20
GradeIndustrial
Horsepower2 hp
ManufacturerHubbell
MaterialNylon
NEMA RatingL7-15P
Number of Poles2
Number of Wires3
Package TypeEACH
SeriesHBL
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Grounding Cord Mount
Type / StyleGrounding
Voltage Rating277 V AC
Documents
Applications
Power Connection Applications
Warranty
Limited
Features
- Roomy wiring chamber provides ample space for wiring
- Individually molded face for each blade configuration
- Ribbed nylon housing provides a secure grip that's impact and chemical resistant
Specifications
Standards/Approvals: UL 498|UL94 Flammability Rating|Federal Specification W-C-596|CSA C22.2 No. 42/0.6
