Hubbell Wiring Device - Kellems HBL4760

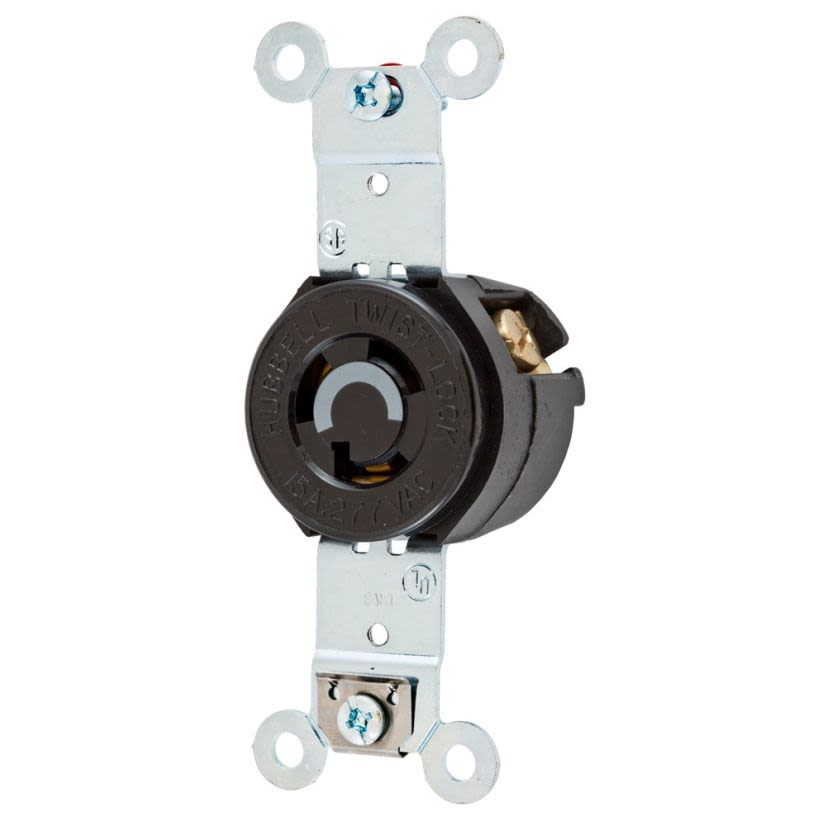

Hubbell Wiring Device-Kellems HBL4760 HBL 1-Phase Heavy Duty Single Screw Mount Locking Receptacle, 277 VAC, 15 A, 2 Poles, 3 Wires, Brown
Hubbell Wiring Device - Kellems HBL4760
Hubbell Wiring Device-Kellems HBL4760 HBL 1-Phase Heavy Duty Single Screw Mount Locking Receptacle, 277 VAC, 15 A, 2 Poles, 3 Wires, BrownInventory Not Available
Inventory Not Available
Product Description
Hubbell Wiring Device-Kellems, HBL4760, Locking Receptacle, 1-Phase Heavy Duty Single Screw Mount, Series: HBL, 277 VAC, 15 A, 2 hp, 2 Pole, 3 Wires, L7-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Thermoplastic, Brown, 3.28 x 1.53 x 1.27 in Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorBrown
Country of OriginUS
Dimensions3.28 x 1.53 x 1.27 in
GradeIndustrial
Horsepower2 hp
ManufacturerHubbell
MaterialThermoplastic
NEMA RatingL7-15R
Number of Poles2
Number of Wires3
Package TypeEACH
SeriesHBL
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Heavy Duty Single Screw Mount
Type / StyleHeavy Duty Single
Voltage Rating277 V AC
Documents
Features
Withstands 2000 VAC dielectric voltageMaximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise#8-32 brass terminal and ground screw14 AWG terminal accommodationCertified for current interrupting at full rated current interruptingSteel zinc plated mounting screw
Specifications
Standards/Approvals: UL 498|CSA Certified| NEMA WD1/WD5
