Hubbell Wiring Device - Kellems L1620P

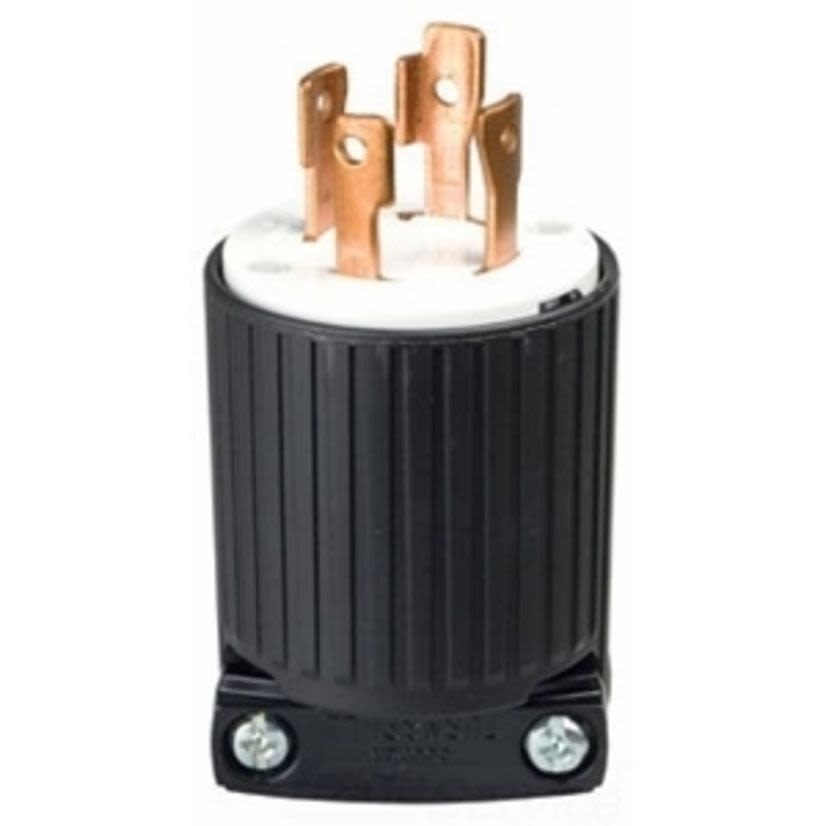

Hubbell Wiring Device-Kellems Twist-Lock L1620P 3-Phase Grounding Standard Sized Cord Mount Locking Male Plug, 480 V AC, 20 A, 3 Poles, 4 Wires, Black
Hubbell Wiring Device - Kellems L1620P
Hubbell Wiring Device-Kellems Twist-Lock L1620P 3-Phase Grounding Standard Sized Cord Mount Locking Male Plug, 480 V AC, 20 A, 3 Poles, 4 Wires, BlackIn Stock: 17more info
|
BrandHubbell Wiring Device - Kellems
MFG #L1620P
Werner Part #1510721
UPC783585835921
In Stock: 17more info
|
BrandHubbell Wiring Device - Kellems
MFG #L1620P
Werner Part #1510721
UPC783585835921
Product Description
Hubbell Wiring Device-Kellems Twist-Lock Locking Male Plug, 3-Phase Grounding Standard Sized Cord Mount, 480 V AC, 20 A, 3 Pole, 4 Wires, L16-20P NEMA Rating, Commercial/Industrial Grade, -40 to 60 deg C, Screw Terminal, Composite, Black
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorBlack
Country of OriginCN
GradeCommercial/Industrial
GTIN00783585835921
ManufacturerHubbell
MaterialComposite
NEMA RatingL16-20P
Number of Poles3
Number of Wires4
Package TypeEACH
SeriesGrounding Standard Sized
Temperature Rating-40 to 60 deg C
Terminal TypeScrew
Type3-Phase Grounding Standard Sized Cord Mount
Type / StyleGrounding Standard Sized
Voltage Rating480 V AC
Documents
Applications
For power connection applications
Features
- Visible NEMA ratings
- Captive assembly screws
- Supertough nylon body
- Impact modified nylon blade/contact holder
- Brass contacts/blade
- Withstands 3500 VAC per UL 498 dielectric voltage
- 600 VAC or 250 VDC maximum working voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL 498
- Minimum 4.8 times rated current for 100 cycles overload
- Terminals identified in accordance with UL 498 (brass, white, green)
- 18 to 8 AWG flexible cord
- Ratings and NEMA identification are permanently marked on device
- Indoor dry unless protected by additional means
- 14 to 10 AWG wire
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified
