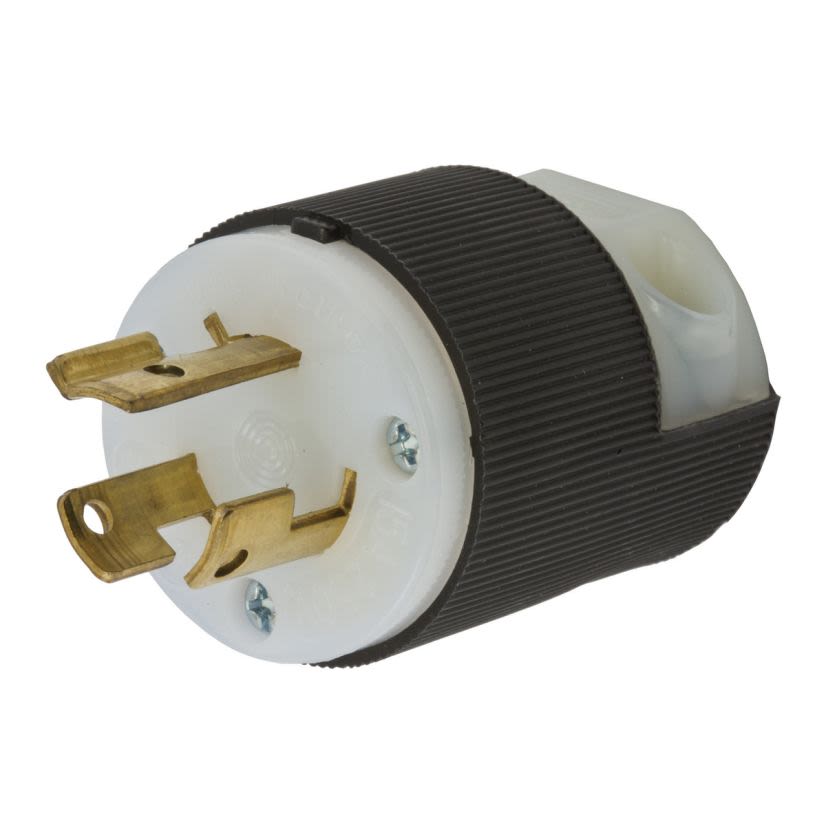

Hubbell Wiring Device - Kellems HBL4570C
Hubbell Wiring Device-Kellems HBL4570C HBL 1-Phase Grounding Cord Mount Locking Plug, 250 V AC, 15 A, 2 Poles, 3 Wires, Black/White
Hubbell Wiring Device - Kellems HBL4570C
Hubbell Wiring Device-Kellems HBL4570C HBL 1-Phase Grounding Cord Mount Locking Plug, 250 V AC, 15 A, 2 Poles, 3 Wires, Black/WhiteIn Stock: 35more info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL4570C
Werner Part #39064
UPC783585170008
In Stock: 35more info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL4570C
Werner Part #39064
UPC783585170008
Product Description
Hubbell Wiring Device-Kellems, HBL4570C, Locking Plug, 1-Phase Grounding Cord Mount, Series: HBL, 250 V AC, 15 A, 1.5 hp, 2 Pole, 3 Wires, L6-15P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 1.53 x 1.53 x 1.97 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack/White
Country of OriginUS
Dimensions1.53 x 1.53 x 1.97 in
Enclosure TypeIP20
GradeIndustrial
GTIN00783585170008
Horsepower1.5 hp
ManufacturerHubbell
MaterialNylon
NEMA RatingL6-15P
Number of Poles2
Number of Wires3
Package TypeEACH
SeriesHBL
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Grounding Cord Mount
Type / StyleGrounding
Voltage Rating250 V AC
Documents
Applications
Power Connection Applications
Warranty
Limited
Features
- Individually molded face for each blade configuration
- Roomy wiring chamber provides ample space for wiring
- Ribbed nylon housing provides a secure grip that's impact and chemical resistant
Specifications
Standards/Approvals: UL 498, UL 94 Flammability Rating, Federal Specification W-C-596, CSA C22.2 No. 42, 0.6 Certified
