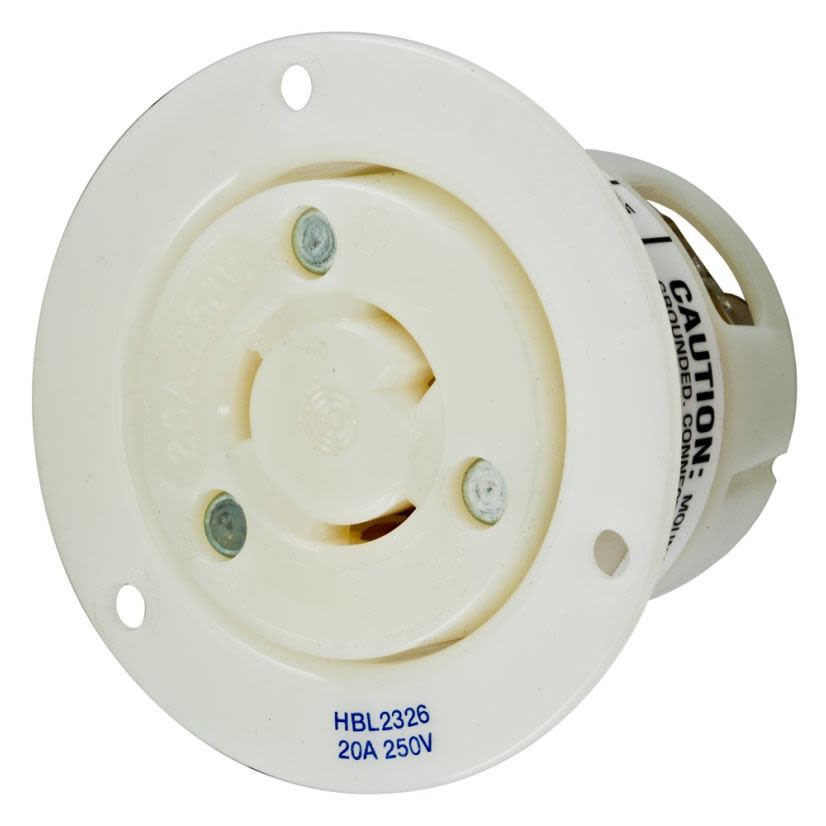

Hubbell Wiring Device - Kellems HBL2326
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL2326 1-Phase Flanged Grounding Single Standard Screw Mount Locking Receptacle, 250 V AC, 20 A, 2 Poles, 3 Wires, White
Hubbell Wiring Device - Kellems HBL2326
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL2326 1-Phase Flanged Grounding Single Standard Screw Mount Locking Receptacle, 250 V AC, 20 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL2326
Werner Part #38864
UPC783585037875
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL2326
Werner Part #38864
UPC783585037875
Product Description
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip, HBL2326, Locking Receptacle, 1-Phase Flanged Grounding Single Standard Screw Mount, 250 V AC, 20 A, 2 hp, 2 Pole, 3 Wires, L6-20R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, White, 2.88 x 2.88 x 2.09 in Dimensions
Attributes
Documents
Applications
Included
Features
Specifications
Attributes
ColorWhite
Country of OriginUS
Dimensions2.88 x 2.88 x 2.09 in
GradeIndustrial
Horsepower2 hp
ManufacturerHubbell
MaterialNylon
NEMA RatingL6-20R
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Flanged Grounding Single Standard Screw Mount
Type / StyleFlanged Grounding Single Standard
Voltage Rating250 V AC
Documents
Applications
Dry Locations and Indoor Applications
Included
Mounting Screws
Features
- Back wired terminations for ease of installation
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 498|CSA C22.2 No. 42|NEMA WD1/WD5
