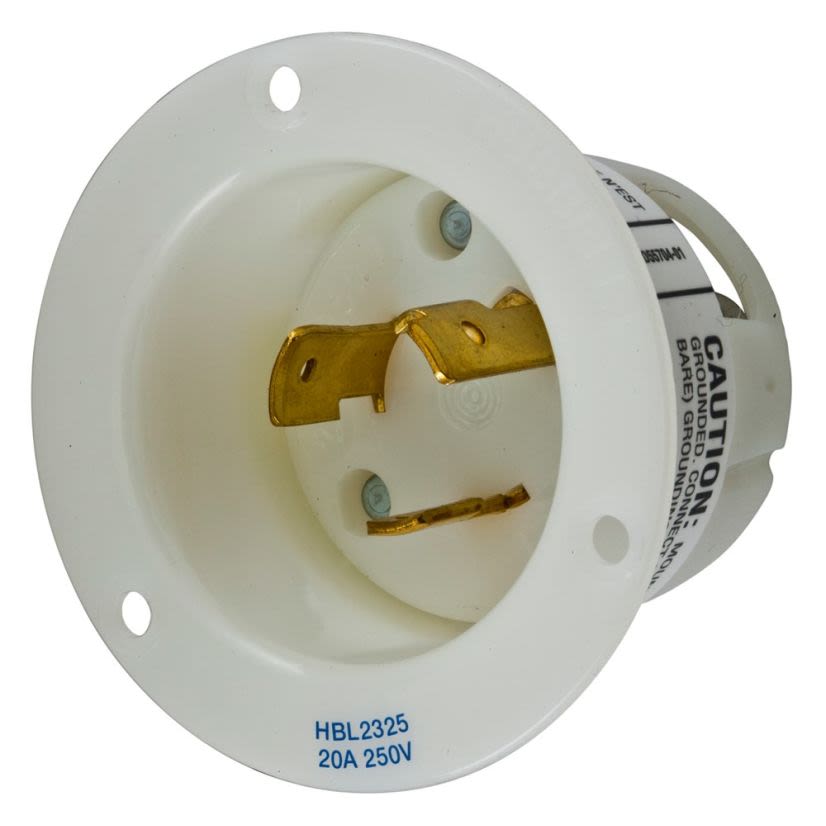

Hubbell Wiring Device - Kellems HBL2325
Hubbell Wiring Device-Kellems HBL2325 HBL 1-Phase Extra Heavy Duty Grounding Screw Mount Locking Flanged Inlet, 250 V AC, 20 A, 2 Poles, 3 Wires, White
Hubbell Wiring Device - Kellems HBL2325
Hubbell Wiring Device-Kellems HBL2325 HBL 1-Phase Extra Heavy Duty Grounding Screw Mount Locking Flanged Inlet, 250 V AC, 20 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL2325
Werner Part #38863
UPC783585037868
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL2325
Werner Part #38863
UPC783585037868
Product Description
Hubbell Wiring Device-Kellems, HBL2325, Locking Flanged Inlet, 1-Phase Extra Heavy Duty Grounding Screw Mount, Series: HBL, 250 V AC, 20 A, 2 hp, 2 Pole, 3 Wires, L6-20P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP44 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, White, 2.88 x 2.88 x 2.09 in Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Specifications
Attributes
ColorWhite
Country of OriginUS
Dimensions2.88 x 2.88 x 2.09 in
Enclosure TypeNEMA 4/4X/12/IP44
GradeIndustrial
Horsepower2 hp
ManufacturerHubbell
MaterialNylon
NEMA RatingL6-20P
Number of Poles2
Number of Wires3
Package TypeEACH
SeriesHBL
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Extra Heavy Duty Grounding Screw Mount
Type / StyleExtra Heavy Duty Grounding
Voltage Rating250 V AC
Documents
Applications
Extra Heavy Duty Industrial Applications
Included
Mounting Screws
Warranty
Limited
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
Specifications
Standards/Approvals: UL 498 Listed|Federal Specification W-C-596|CSA C22.2 No. 42 Certified|NEMA WD1/WD5
