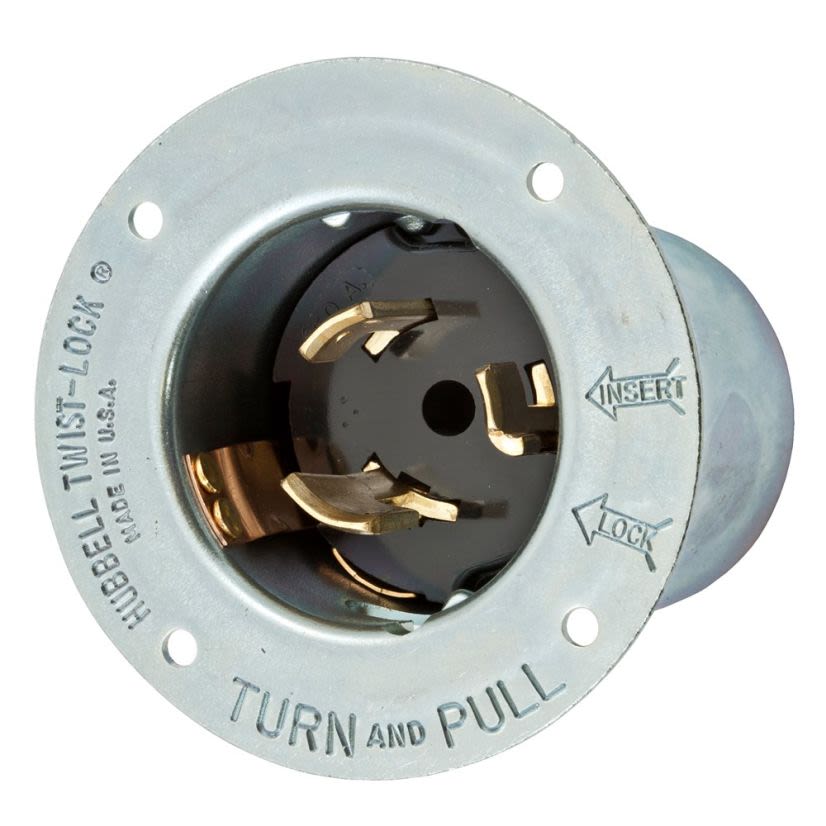

Hubbell Wiring Device - Kellems CS8275
Hubbell Wiring Device-Kellems Twist-Lock CS8275 1-Phase Extra Heavy Duty Grounding Screw Mount Flanged Inlet, 250 V AC, 50 A, 2 Poles, 3 Wires, Metallic
Hubbell Wiring Device - Kellems CS8275
Hubbell Wiring Device-Kellems Twist-Lock CS8275 1-Phase Extra Heavy Duty Grounding Screw Mount Flanged Inlet, 250 V AC, 50 A, 2 Poles, 3 Wires, MetallicNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #CS8275
Werner Part #38669
UPC783585829005
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #CS8275
Werner Part #38669
UPC783585829005
Product Description
Hubbell Wiring Device-Kellems Twist-Lock, CS8275, Flanged Inlet, 1-Phase Extra Heavy Duty Grounding Screw Mount, 250 V AC, 50 A, 2 Pole, 3 Wires, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Steel, Metallic, 3.5 x 2.62 x 2.17 in Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorMetallic
Country of OriginUS
Dimensions3.5 x 2.62 x 2.17 in
Enclosure TypeIP20
GradeIndustrial
ManufacturerHubbell
MaterialSteel
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypePressure Screw
Type1-Phase Extra Heavy Duty Grounding Screw Mount
Type / Style1-Phase Extra Heavy Duty Grounding
Voltage Rating250 V AC
Documents
Applications
Dry Locations and Indoor Applications
Features
- Thermoset interior provides superior heat resistance
- Metallic flanged casing provides maximum strength and protection
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|UL 498|CSA 22.2 No.0.42
