Hubbell Wiring Device - Kellems CS6375

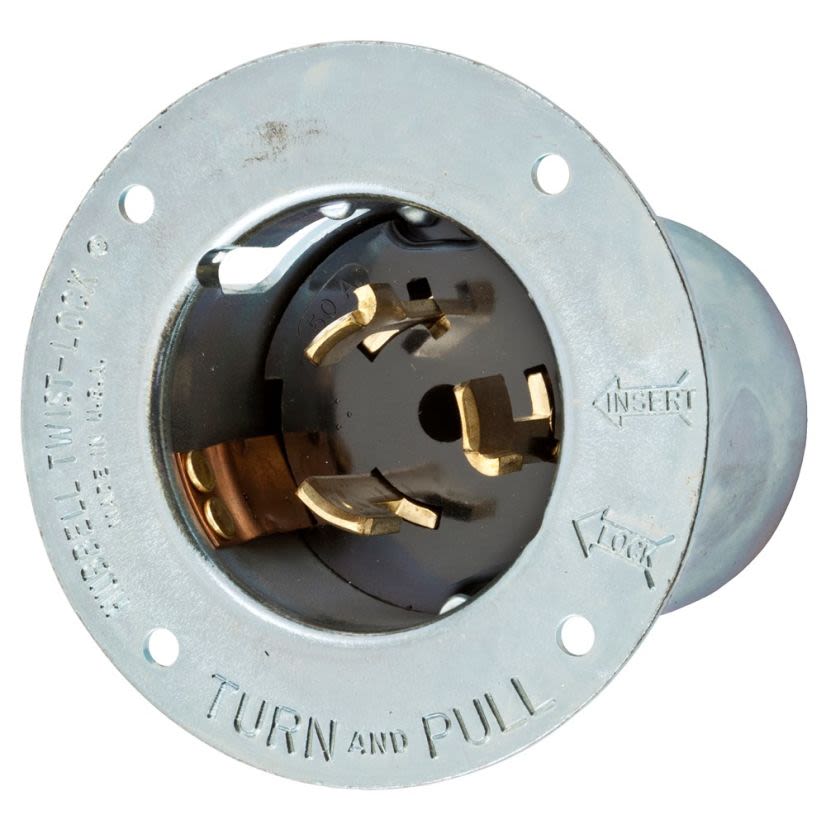

Hubbell Wiring Device-Kellems CS6375 CS Series 1-Phase Extra Heavy Duty Grounding Screw Mount Flanged Inlet, 125/250 V AC, 50 A, 3 Poles, 4 Wires, Metallic
Hubbell Wiring Device - Kellems CS6375
Hubbell Wiring Device-Kellems CS6375 CS Series 1-Phase Extra Heavy Duty Grounding Screw Mount Flanged Inlet, 125/250 V AC, 50 A, 3 Poles, 4 Wires, MetallicOut of Stockmore info
|
BrandHubbell Wiring Device - Kellems
MFG #CS6375
Werner Part #38661
UPC783585828206
Out of Stockmore info
|
BrandHubbell Wiring Device - Kellems
MFG #CS6375
Werner Part #38661
UPC783585828206
Product Description
Hubbell Wiring Device-Kellems, CS6375, Flanged Inlet, 1-Phase Extra Heavy Duty Grounding Screw Mount, Series: CS Series, 125/250 V AC, 50 A, 3 Pole, 4 Wires, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Steel, Metallic, 2.17 x 3.5 x 2.62 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorMetallic
Country of OriginUS
Dimensions2.17 x 3.5 x 2.62 in
Enclosure TypeIP20
GradeIndustrial
ManufacturerHubbell
MaterialSteel
NEMA RatingNON-NEMA
Number of Poles3
Number of Wires4
Package TypeEACH
SeriesCS Series
Temperature Rating-40 to 75 deg C
Terminal TypePressure Screw
Type1-Phase Extra Heavy Duty Grounding Screw Mount
Type / Style1-Phase Extra Heavy Duty Grounding
Voltage Rating125/250 V AC
Documents
Applications
Dry Locations and Indoor Applications
Warranty
Limited
Features
- Metallic flanged casing provides maximum strength and protection
- Thermoset interior provides superior heat resistance
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|UL 498|CSA 22.2 No.0.42
