Hubbell Wiring Device - Kellems L1530C

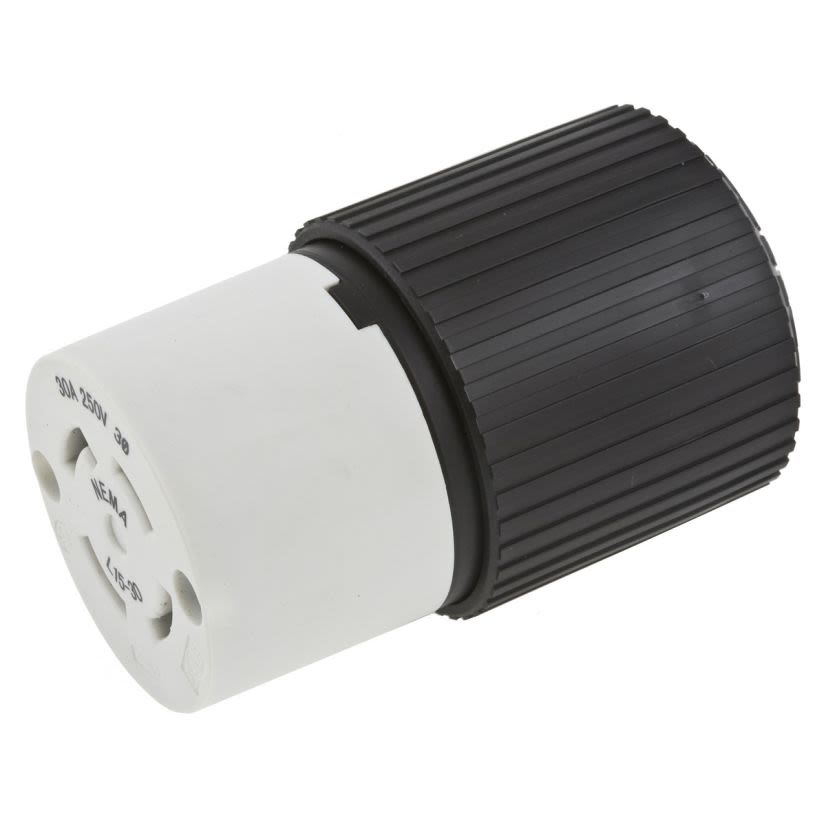

Hubbell Wiring Device-Kellems Hubbell-PRO Twist-Lock L1530C 3-Phase Female Grounding Standard Cord Mount Locking Connector, 250 V AC, 30 A, 3 Poles, 4 Wires, Black/White
Hubbell Wiring Device - Kellems L1530C
Hubbell Wiring Device-Kellems Hubbell-PRO Twist-Lock L1530C 3-Phase Female Grounding Standard Cord Mount Locking Connector, 250 V AC, 30 A, 3 Poles, 4 Wires, Black/WhiteIn Stock: 28more info
|
BrandHubbell Wiring Device - Kellems
MFG #L1530C
Werner Part #1510796
UPC783585840680
In Stock: 28more info
|
BrandHubbell Wiring Device - Kellems
MFG #L1530C
Werner Part #1510796
UPC783585840680
Product Description
Hubbell Wiring Device-Kellems Hubbell-PRO Twist-Lock Locking Connector, 3-Phase Female Grounding Standard Cord Mount, 250 V AC, 30 A, 3 Pole, 4 Wires, L15-30R NEMA Rating, Commercial/Industrial Grade, 0.625 to 1.05 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 1.88 in ID x 2.13 in OD
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorBlack/White
Country of OriginCN
Dimensions1.88 in ID x 2.13 in OD
GradeCommercial/Industrial
GTIN00783585840680
ManufacturerHubbell
MaterialComposite
NEMA RatingL15-30R
Number of Poles3
Number of Wires4
Package TypeEACH
Series3-Phase Female Grounding Standard
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type3-Phase Female Grounding Standard Cord Mount
Type / StyleLocking Connector
Voltage Rating250 V AC
Documents
Applications
Heavy Duty Industrial Applications
Features
- Supertough nylon body
- Visible NEMA ratings
- Captive assembly screws
- Impact modified nylon blade/contact holder
- High performance copper alloy contacts/blade
- Withstands 3500 VAC per UL 498 dielectric voltage
- Minimum 4.8 times rated current for 100 cycles overload
- Terminals identified in accordance with UL 498
- 18 to 8 AWG flexible cord terminal accommodation
- Ratings and NEMA identification are permanently marked on device
- Cord mounted
- Insulated body
- Indoor dry unless protected by additional means
- 12 to 8 AWG conductor size
- Standard sized product
- 30 A 3-phase delta 250 VAC
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA Certified|UL 498|NEMA WD1/WD5
