Hubbell Wiring Device - Kellems HBL2733

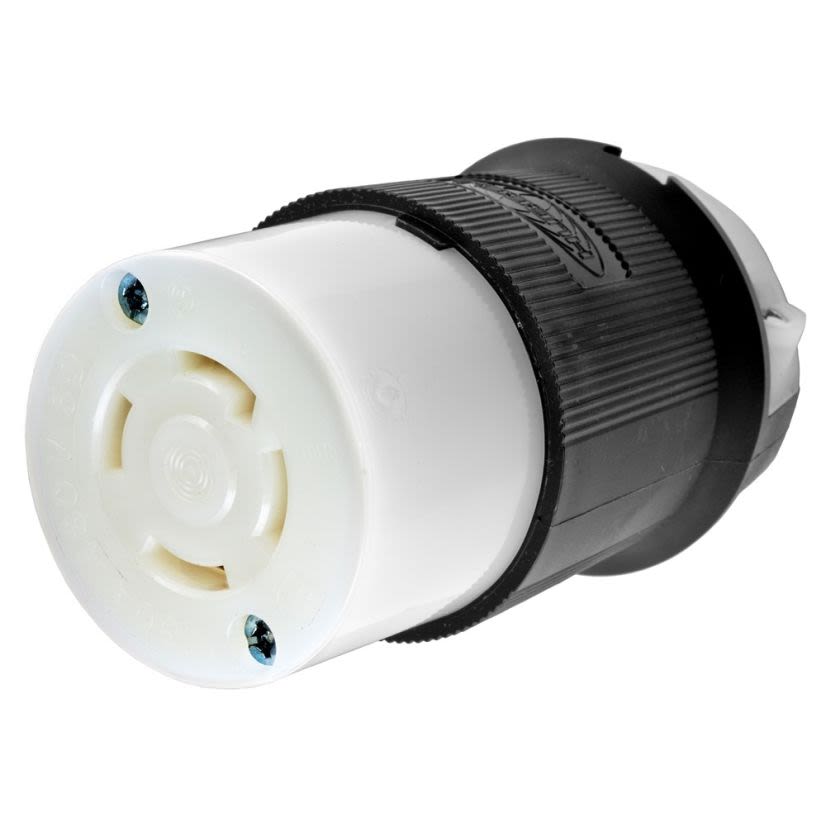

Hubbell Wiring Device-Kellems HBL2733 HBL Heavy Duty Grounding Cord Mount Locking Connector, 480 V AC, 30 A, 3 Poles, 4 Wires, Black/White
Hubbell Wiring Device - Kellems HBL2733
Hubbell Wiring Device-Kellems HBL2733 HBL Heavy Duty Grounding Cord Mount Locking Connector, 480 V AC, 30 A, 3 Poles, 4 Wires, Black/WhiteIn Stock: 12more info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL2733
Werner Part #38961
UPC783585039336
In Stock: 12more info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL2733
Werner Part #38961
UPC783585039336
Product Description
Hubbell Wiring Device-Kellems, HBL2733, Locking Connector, Heavy Duty Grounding Cord Mount, Series: HBL, 480 V AC, 30 A, 10 hp, 3 Pole, 4 Wires, L16-30R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.63 to 1.2 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.33 x 2.33 x 3.86 in Dimensions
Attributes
Documents
Warranty
Features
Specifications
Attributes
ColorBlack/White
Country of OriginUS
Dimensions2.33 x 2.33 x 3.86 in
Enclosure TypeIP20
GradeIndustrial
Horsepower10 hp
ManufacturerHubbell
MaterialNylon
NEMA RatingL16-30R
Number of Poles3
Number of Wires4
Package TypeEACH
SeriesHBL
Temperature Rating-40 to 75 deg C
Terminal TypePressure Screw
TypeHeavy Duty Grounding Cord Mount
Type / StyleHeavy Duty Grounding
Voltage Rating480 V AC
Documents
Warranty
Limited
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
Specifications
Standards/Approvals: UL 498| Federal Specification W-C-596|CSA C22.2 No. 42| NEMA WD1/WD5
