Hubbell Wiring Device - Kellems CS8364C

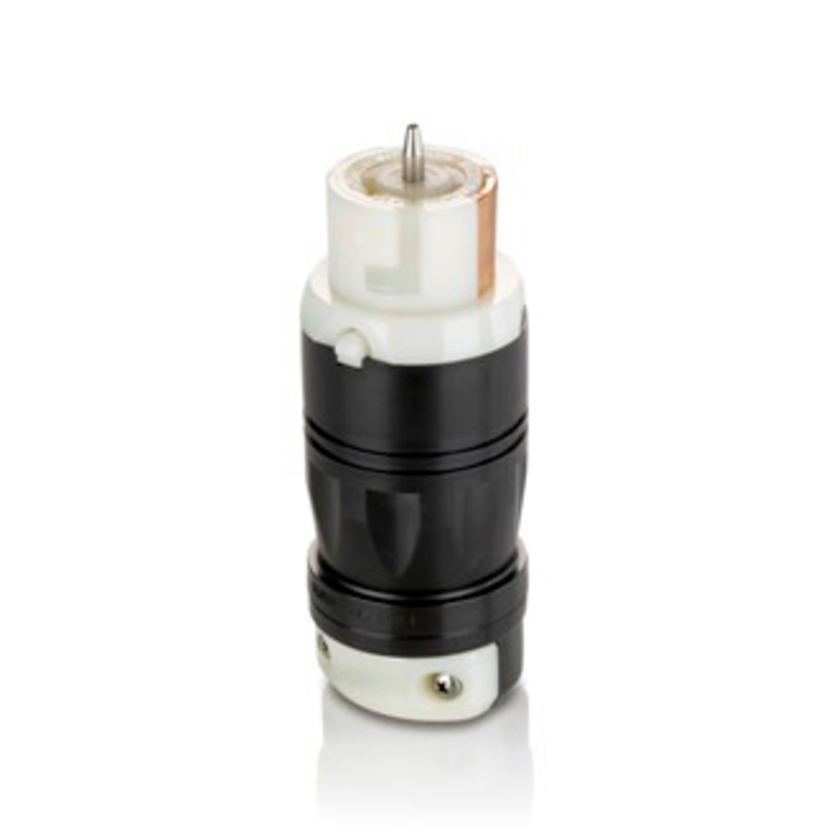

Hubbell Wiring Device-Kellems Twist-Lock Insulgrip CS8364C CS Series Grounding Heavy Duty Cord Mount Locking Connector, 250 V AC, 50 A, 3 Poles, 4 Wires, Black/White
Hubbell Wiring Device - Kellems CS8364C
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip CS8364C CS Series Grounding Heavy Duty Cord Mount Locking Connector, 250 V AC, 50 A, 3 Poles, 4 Wires, Black/WhiteIn Stock: 61more info
|
BrandHubbell Wiring Device - Kellems
MFG #CS8364C
Werner Part #38670
UPC783585829104
In Stock: 61more info
|
BrandHubbell Wiring Device - Kellems
MFG #CS8364C
Werner Part #38670
UPC783585829104
Product Description
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip, CS8364C, Locking Connector, Grounding Heavy Duty Cord Mount, Series: CS Series, 250 V AC, 50 A, 3 Pole, 4 Wires, Industrial Grade, IP20 Enclosure, 3/4 to 1-1/8 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 6.5 x 2.56 x 2.5 in Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorBlack/White
Country of OriginUS
Dimensions6.5 x 2.56 x 2.5 in
Enclosure TypeIP20
GradeIndustrial
ManufacturerHubbell
MaterialNylon
NEMA RatingNON-NEMA
Number of Poles3
Number of Wires4
Package TypeEACH
SeriesCS Series
Temperature Rating-40 to 75 deg C
Terminal TypePressure Screw
TypeGrounding Heavy Duty Cord Mount
Type / StyleGrounding Heavy Duty
Voltage Rating250 V AC
Documents
Features
- Thermoplastic polyester interior provides heat resistance and impact strength
- Oversized contacts minimize operating temperature
- Heavy duty two-piece external cord clamp provides maximum strain relief
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
Specifications
Standards/Approvals: UL 498, UL 94-V-0 Flammability Rating|CSA C22.2 No. 42
