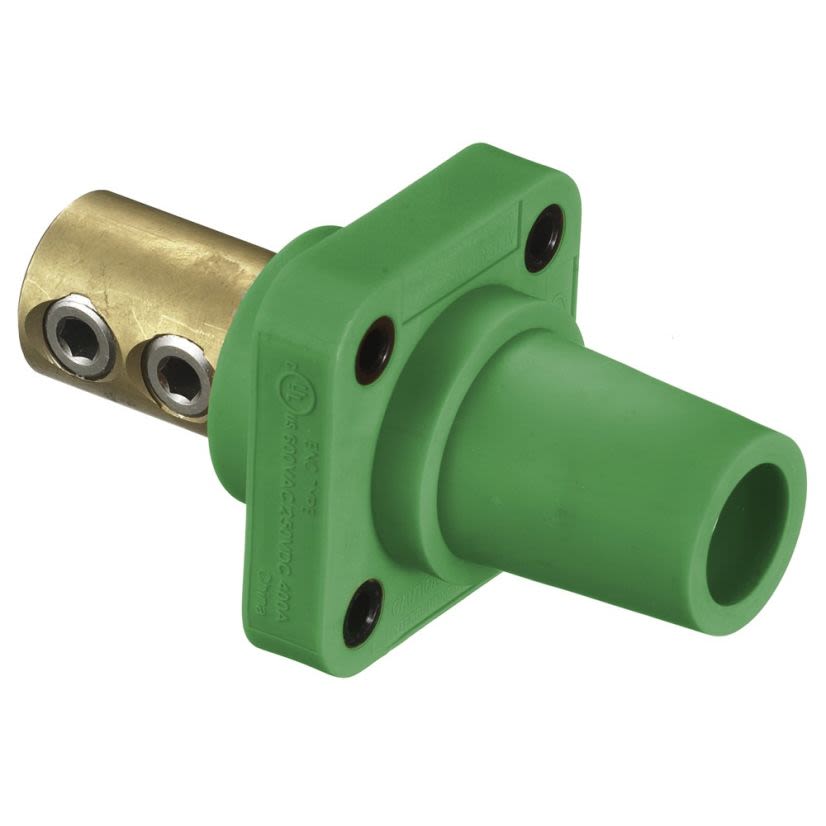

Hubbell Wiring Device - Kellems HBLFRGN
Hubbell Wiring Device-Kellems HBLFRGN 16 Series 1-Phase Female Heavy Duty Single Pole Receptacle, 600 V AC/250 V DC, 400 A, 4 to 4/0 AWG Wire, Double Set Screw Connection, 3R/4X/12K NEMA Rating
Hubbell Wiring Device - Kellems HBLFRGN
Hubbell Wiring Device-Kellems HBLFRGN 16 Series 1-Phase Female Heavy Duty Single Pole Receptacle, 600 V AC/250 V DC, 400 A, 4 to 4/0 AWG Wire, Double Set Screw Connection, 3R/4X/12K NEMA RatingNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems, HBLFRGN, Single Pole Receptacle, 1-Phase Female Heavy Duty, Series: 16 Series, 600 V AC/250 V DC, 400 A, 4 to 4/0 AWG Wire, Double Set Screw Connection, Brass Contact, Elastomer Housing Material, 3R/4X/12K NEMA Rating, Threaded Thru-Hole Mounting, Specifications: 240000 W, 1-Wire, 90 deg C, Green, 4.1 in L x 2.2 in W Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorGreen
Connection TypeDouble Set Screw
Contact MaterialBrass
Country of OriginCN
Dimensions4.1 in L x 2.2 in W
Housing MaterialElastomer
ManufacturerHubbell
Mounting TypeThreaded Thru-Hole
NEMA Rating3R/4X/12K
Package TypeEACH
Series16 Series
Size of Wire4 to 4/0 AWG
Temperature Rating90 deg C
Type1-Phase Female Heavy Duty
Type / StyleReceptacle
Voltage Rating600 V AC/250 V DC
Documents
Applications
Theatre, Stage and Studio, Attachment Plugs and Receptacles and High Ampacity Connections
Features
- Lock symbol aids in the mating of devices and provides a clear indication that the devices are properly connected
- Industrial Grade
- Rounded corners reduce the possibility of catching or snagging on structures or equipment
- Strip gauge molded into every plug and receptacle housing, simplifies installation and saves time
- With lock indicator symbol making mating clear and simple, devices can lock 180 deg to prevent unintended disconnects
- Engineered body design makes installation simple with no need for additional tools and the non-metallic retaining screw helps to make operation safe for all involved
- Non-conductive retaining screw locks contacts in place and allows for easy installation, prevents contact movement within housing
- Insulgrip style housing for superior gripping conforms to the user's hand making it easy to connect and disconnect, even with gloves on
- Special screw thread requires fewer turns than most competitors and reduces the risk of a conductive screw being substituted
- Recessed mounting screw minimizes screwdriver slippage
- Extra long non-conductive inner sleeve reduces force required to install housing over contacts, easier to rotate contact in body for installing retaining screw
- Easily identifiable cable cut-off points for secure fit allows you to easily customize and cut the housing to the required/correct cable size
- Provides high contact pressure and vibration resistant connection, which helps reduce operating temperatures and extends product life
Specifications
240000 W, 1-Wire
