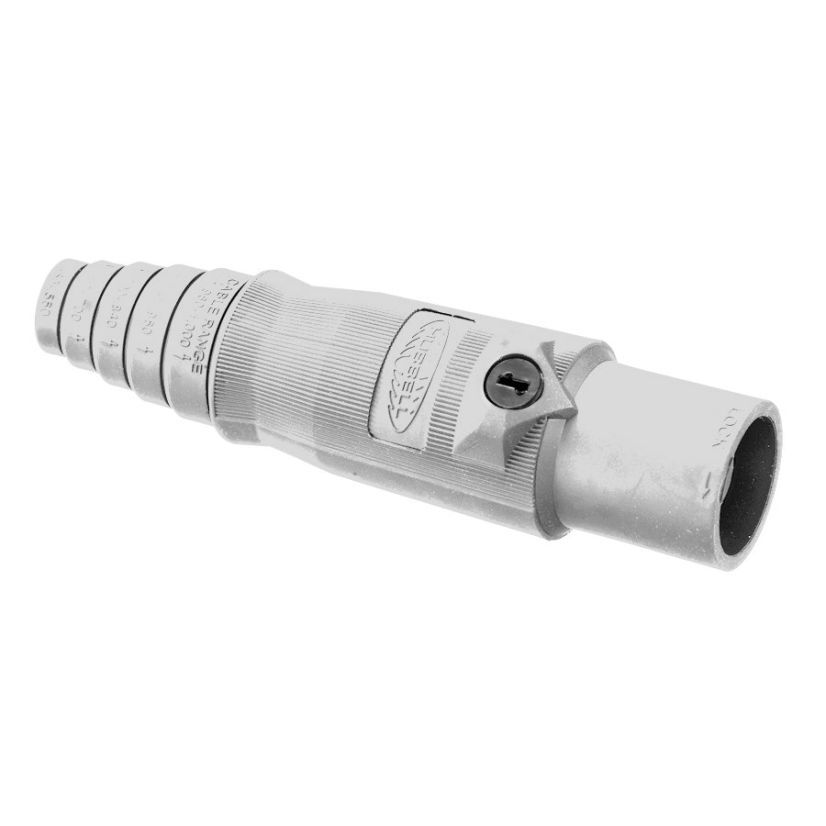

Hubbell Wiring Device - Kellems HBL400MW
Hubbell Wiring Device-Kellems HBL400MW 16 Series 1-Pole Heavy Duty Male Standard SC/PPC Type Plug, 600 V AC/250 V DC, 400 A, 2/0 to 4/0 AWG Wire, Pressure Screw Terminal Connection, 3R/4X/12K NEMA Rating
Hubbell Wiring Device - Kellems HBL400MW
Hubbell Wiring Device-Kellems HBL400MW 16 Series 1-Pole Heavy Duty Male Standard SC/PPC Type Plug, 600 V AC/250 V DC, 400 A, 2/0 to 4/0 AWG Wire, Pressure Screw Terminal Connection, 3R/4X/12K NEMA RatingNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems, HBL400MW, Plug, 1-Pole Heavy Duty Male Standard SC/PPC Type, Series: 16 Series, 600 V AC/250 V DC, 400 A, 2/0 to 4/0 AWG Wire, Pressure Screw Terminal Connection, Brass Contact, Composite Housing Material, 3R/4X/12K NEMA Rating, Cable Mounting, Specifications: 1-Pole, 1 ph, 1-Wire, 240000 W, 90 deg C, White, 1.48 in Dia x 6.74 in L Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorWhite
Connection TypePressure Screw Terminal
Contact MaterialBrass
Country of OriginCN
Dimensions1.48 in Dia x 6.74 in L
Housing MaterialComposite
ManufacturerHubbell
Mounting TypeCable
NEMA Rating3R/4X/12K
Package TypeEACH
Series16 Series
Size of Wire2/0 to 4/0 AWG
Temperature Rating90 deg C
Type1-Pole Heavy Duty Male Standard SC/PPC Type
Type / StyleHeavy Duty Male Standard SC/PPC Type
Voltage Rating600 V AC/250 V DC
Documents
Applications
Theatre, Stage and Studio, Attachment Plugs and Receptacles and High Ampacity Connections Applications
Features
- Non-Conductive Retaining Screw locks contacts in place
- Large Raised Alignment Arrow aids in the mating of devices
- Insulgrip Style Housing for Superior Gripping
Specifications
1-Pole, 1 ph, 1-Wire, 240000 W
