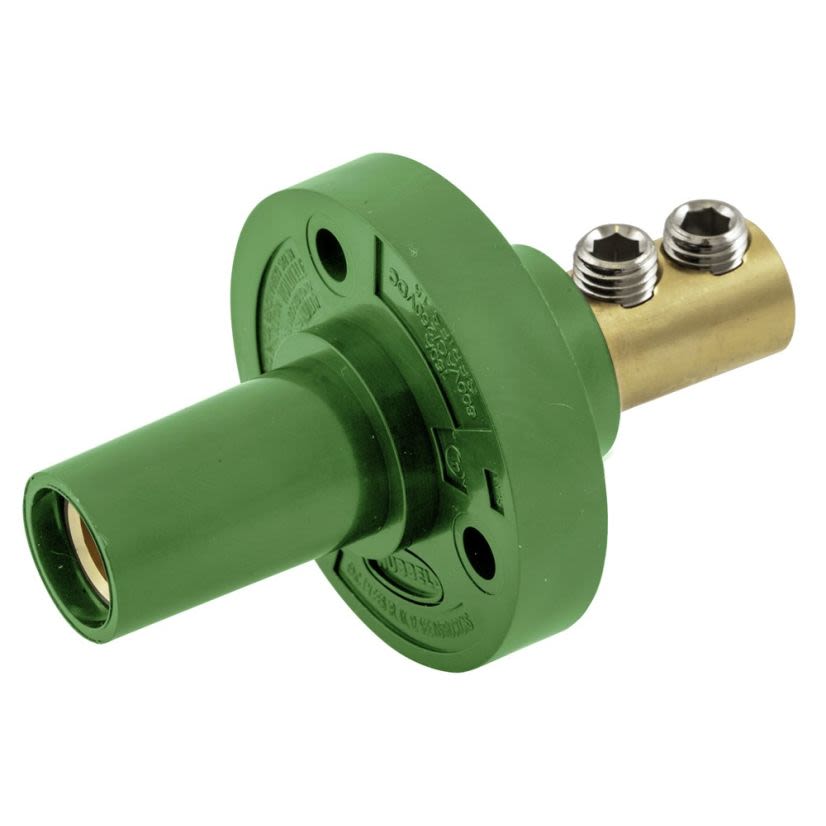

Hubbell Wiring Device - Kellems HBL15FRGN
Hubbell Wiring Device-Kellems HBL15FRGN 15 Series 1-Pole Extra Heavy Duty Female Standard Single Pole Receptacle With 4 AWG SC/PPC Cord, 600 V AC/250 V DC, 150 A, 4 AWG Wire, Double Set Screw Connection
Hubbell Wiring Device - Kellems HBL15FRGN
Hubbell Wiring Device-Kellems HBL15FRGN 15 Series 1-Pole Extra Heavy Duty Female Standard Single Pole Receptacle With 4 AWG SC/PPC Cord, 600 V AC/250 V DC, 150 A, 4 AWG Wire, Double Set Screw ConnectionNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL15FRGN
Werner Part #4016287
UPC783585458212
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL15FRGN
Werner Part #4016287
UPC783585458212
Product Description
Hubbell Wiring Device-Kellems Single Pole Receptacle, 1-Pole Extra Heavy Duty Female Standard, Series: 15 Series, 600 V AC/250 V DC, 150 A, 4 AWG Wire, Double Set Screw Connection, Brass Contact, Thermoplastic Housing Material, Panel/Stud Mounting, Specifications: 1 ph, 1-Pin, 90000 W, 90 deg C, Green, 1.86 in Dia x 2.95 in L
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorGreen
Connection TypeDouble Set Screw
Contact MaterialBrass
Country of OriginCN
Dimensions1.86 in Dia x 2.95 in L
Housing MaterialThermoplastic
ManufacturerHubbell
Mounting TypePanel/Stud
Package TypeEACH
Series15 Series
Size of Wire4 AWG
Temperature Rating90 deg C
Type1-Pole Extra Heavy Duty Female Standard
Type / StyleExtra Heavy Duty Female Standard
Voltage Rating600 V AC/250 V DC
Documents
Applications
Dry Locations, Industrial and Indoor Applications
Warranty
Limited
Features
- 150 Amp Series
Specifications
1 ph, 1-Pin, 90000 W
