Hubbell Wiring Device - Kellems QL-505

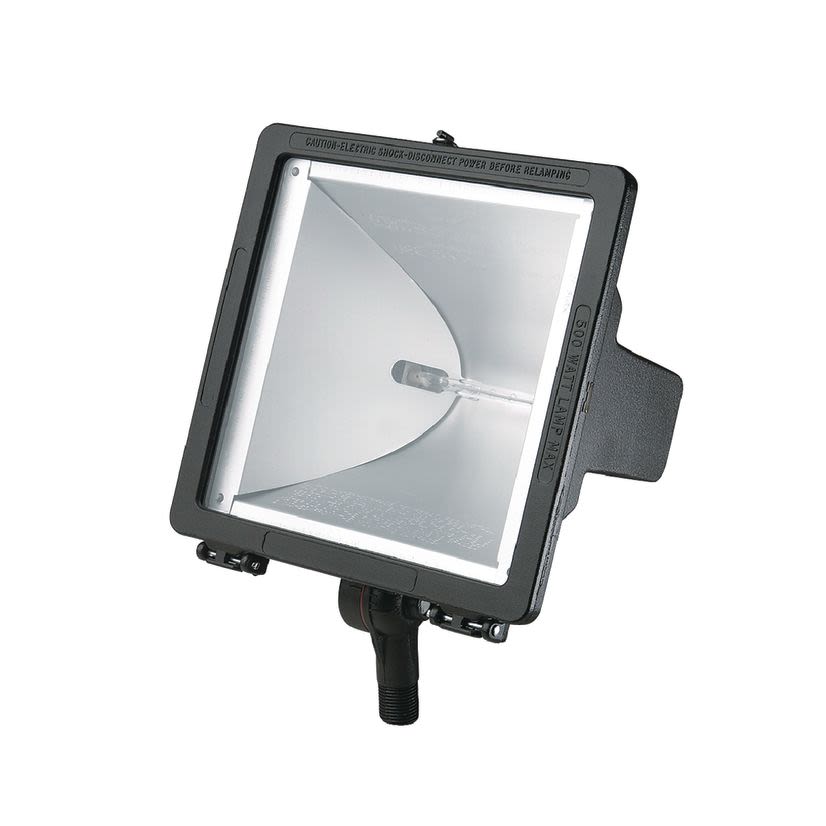

EXO Areamaster QL-505 QUARTZLITER Quartz Floodlight Fixture,) Halide/Halogen/LED Lamp, 300/500 W Fixture, 120 V AC, Architectural Bronze Polyester Coated/Gray Powder Painted Housing
Hubbell Wiring Device - Kellems QL-505
EXO Areamaster QL-505 QUARTZLITER Quartz Floodlight Fixture,) Halide/Halogen/LED Lamp, 300/500 W Fixture, 120 V AC, Architectural Bronze Polyester Coated/Gray Powder Painted HousingNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #QL-505
Werner Part #39783
UPC785988464340
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #QL-505
Werner Part #39783
UPC785988464340
Product Description
EXO Areamaster Quartz Floodlight Fixture, Series: QUARTZLITER, 120 V AC, 300/500 W Fixture, 2.67 to 1.15/1.8 to 0.99 A, Halide/Halogen/LED Lamp, 1000 W Lamp, >60000 hr Average Life, White Light, 3000 K Color Temperature, 80 CRI, Tempered Glass Lens, 35400 Lumens, NEMA 3R/4/4X/IP66/IP67 Enclosure, Knuckle Mounting, Aluminum Housing Material, Architectural Bronze Polyester Coated/Gray Powder Painted Housing Finish, 8-7/8 in H x 8-5/8 in W x 5-1/4 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Average Life>60000 hr
Ceiling Opening4-1/2 in
ColorBlack
Color Rendering Index (CRI)80
Color Temperature3000 K
Country of OriginCN
Diameter4 in
Dimensions8-7/8 in H x 8-5/8 in W x 5-1/4 in D
Enclosure TypeNEMA 3R/4/4X/IP66/IP67
Fixture Wattage300/500 W
Housing FinishArchitectural Bronze Polyester Coated/Gray Powder Painted
Housing MaterialAluminum
Insulation TypeNon-IC
Lamp TypeHalide/Halogen/LED
Lamp Wattage1000 W
Lens TypeTempered Glass
Light ColorWhite
Lumen35400 Lumens
ManufacturerCurrent
Mounting TypeCeiling
Number of Lamps1
Package Type1/PK
SeriesQUARTZLITER
Suitable For Use With4 in Round/Square Trim
TypeMiniature Universal
Type / StyleQuartz Floodlights
Voltage Rating120 V AC
Documents
Applications
General and Accent Flood Lighting where Short Burning Hours are Planned
Warranty
5 years
Features
- Hinged at bottom for positive compression of silicone gasket
- 3-piece anodized reflector for wide, uniform beam
- Units supplied less lamp
- Quartzliter, stainless latch
- Instant ON/OFF
- Gray color
- Wide beam pattern
- Stainless latches
- 1/2 in knuckle mounting
- Die cast aluminum construction
- Copperfree (4/10 of 1% max) aluminum housing and lens door
- Silicone rubber gasket, zinc plated hr steel yoke mount, stainless steel bolts, aluminum close up plugs, stainless steel guard and safety cable, aluminum visor
- Architectural bronze polyester housing, lens cover and yoke mount
- -40 to 55 deg C ambient and 90 deg C supply wire temperature
- 50/60 Hz frequency rating
- <20% THD
- 0.9 power factor
- Luminaires for use in hazardous locations
- Generation 2 HL LED luminaire
- 7 x 6 beam spread
