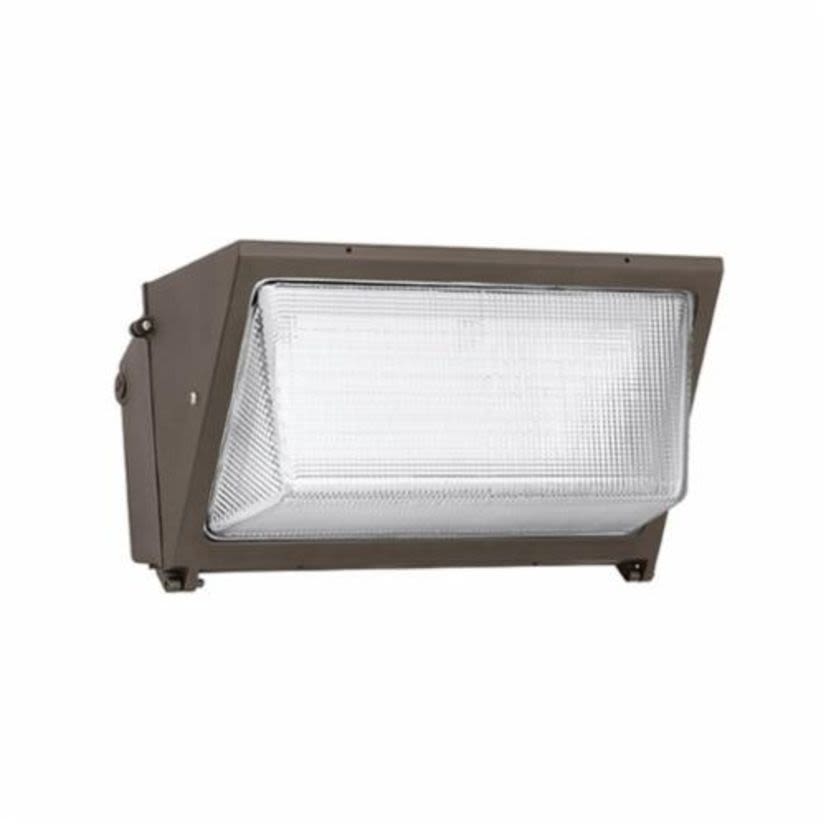

Hubbell Wiring Device - Kellems WGH-250P
EXO Wallmaster WGH-250P Glass Horizontal Lamp/Perimeter Wallpack With Horizontal Lamp, (1) Metal Halide Lamp, 120/220/240/277 VAC, Dark Bronze Housing
Hubbell Wiring Device - Kellems WGH-250P
EXO Wallmaster WGH-250P Glass Horizontal Lamp/Perimeter Wallpack With Horizontal Lamp, (1) Metal Halide Lamp, 120/220/240/277 VAC, Dark Bronze HousingNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EXO Wallmaster Wallpack, Glass Horizontal Lamp/Perimeter, Series: WGH, 120/220/240/277 VAC, Metal Halide Lamp, 70 W Lamp, Medium Lamp Base, 1 Lamp, Pulse Start/Quad Tap Ballast, Prismatic Tempered Glass Lens, Wall Mounting, Aluminum Housing Material, Dark Bronze Housing Finish, 17 in L x 13 in W x 9 in H Dimensions
Attributes
Documents
Warranty
Applications
Features
Included
Specifications
Attributes
Ballast TypePulse Start/Quad Tap
Country of OriginCN
Dimensions17 in L x 13 in W x 9 in H
Housing FinishDark Bronze
Housing MaterialAluminum
Lamp Base TypeMedium
Lamp TypeMetal Halide
Lamp Wattage70 W
Lens TypePrismatic Tempered Glass
ManufacturerCurrent
Mounting TypeWall
Number of Lamps1
Package TypeEACH
SeriesWGH
TypeGlass Horizontal Lamp/Perimeter
Voltage Rating120/220/240/277 V AC
Documents
Warranty
Limited
Applications
Factories, Warehouses, Self Storage and Commercial Building Applications
Features
- Perimeter lighting for safety and security
- Borosilicate glass refractor softens lamp image and provides uniform distribution - 4 times spacing to mounting height
- Cast aluminum frame holds lens and seals to housing gasket with two stainless steel screws
- Door assembly hinges to side on Mid-size units
- Hinges down on large units
- Cast aluminum housing with 1/2 in conduit entries, button photo control can be field installed
- All units have dark bronze powder paint finish, Quad-Tap ballasts and lamps included
- Mogul base socket is heavy duty porcelain with heavy gauge brass nickel plated double lamp grip screw shell and spring-loaded center contacts
- Aluminum reflector is designed for maximum efficiency
- Standard finish is architectural bronze tone baked epoxy
- 104 deg F maximum ambient temperature, 257 deg F supply wire
- For I/2 fixture
- 60 Hz frequency
- 125 deg C supply wire, 40 deg C maximum ambient temperature
- HRE (hot restrike for HID only) option
- Glass refractor
Included
Box Mounting Adapter and Lamp
Specifications
UL 1598|cULus Listed|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
