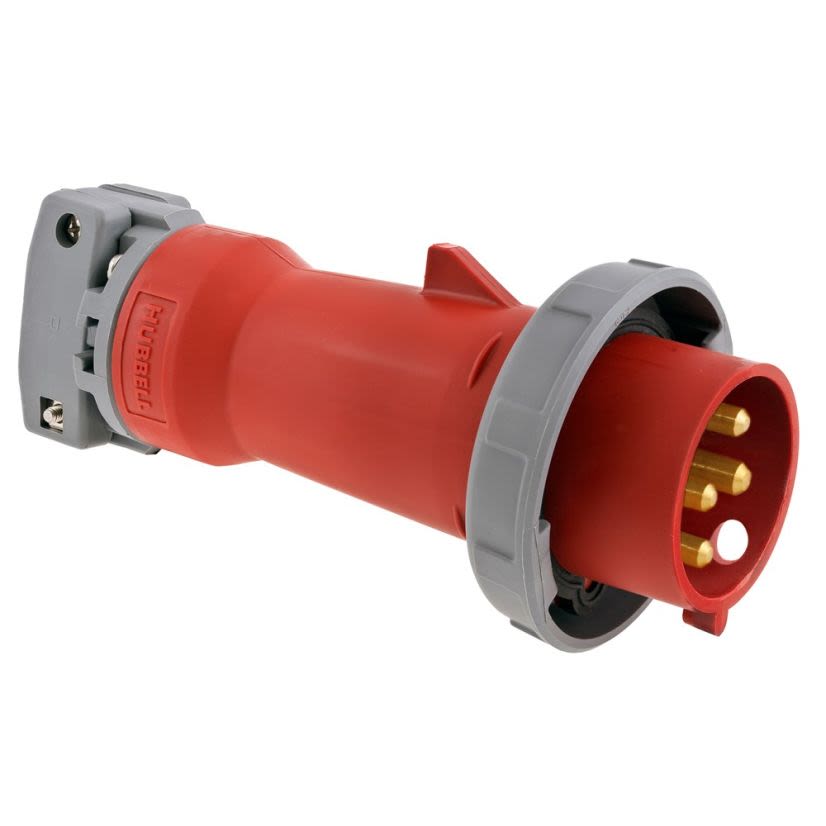

Hubbell Wiring Device - Kellems HBL430P7W
Hubbell Wiring Device-Kellems HBL430P7W 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount Pin and Sleeve Plug, 480 V AC, 30 A, 3 Poles, 4 Wires, Red
Hubbell Wiring Device - Kellems HBL430P7W
Hubbell Wiring Device-Kellems HBL430P7W 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount Pin and Sleeve Plug, 480 V AC, 30 A, 3 Poles, 4 Wires, RedIn Stock: 8more info
|
In Stock: 8more info
|
Product Description
Hubbell Wiring Device-Kellems, HBL430P7W, Pin and Sleeve Plug, 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount, 480 V AC, 30 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 3.74 in Dia x 8.05 in L Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorRed
Country of OriginUS
Dimensions3.74 in Dia x 8.05 in L
Enclosure TypeIP67
GradeIndustrial
ManufacturerHubbell
MaterialComposite
NEMA RatingNON-NEMA
Number of Poles3
Number of Wires4
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypePressure Screw
Type3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount
Type / Style3-Phase Grounding Male Non-NEMA Portable Standard Watertight
Voltage Rating480 V AC
Documents
Applications
High Ampacity Connections Applications
Warranty
Limited
Features
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Heavy duty external cord grips
Specifications
Standards/Approvals: UL 498|UL 1682|UL 1686C2 File No. E146033|IEC 309-1/309-2|CSA File No. LR280C
